Normal and Shear Stress question 2

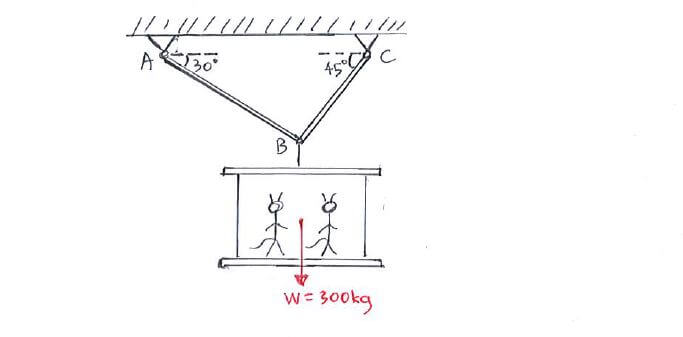

The awesome monkey cage is supported by 2 steel rods, both with a diameter of 50 mm. Calculate the normal stress in rods AB and BC

The awesome monkey cage is supported by 2 steel rods, both with a diameter of 50 mm. Calculate the normal stress in rods AB and BC

Click below to show answer. X

Step 1:

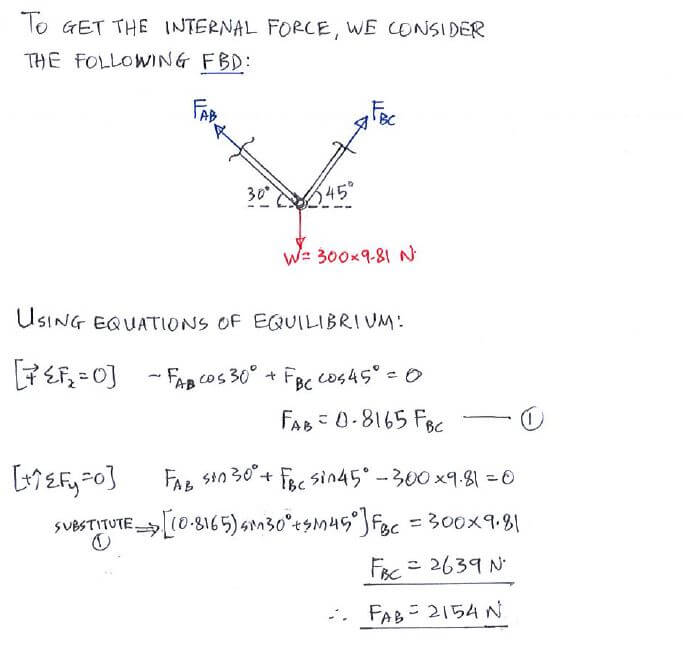

Calculate the internal forces in rods AB and BC

Step 1:
Calculate the internal forces in rods AB and BC

Normal and Shear Stress solution step 1

Step 2:
Calculate normal stress

Step 2:

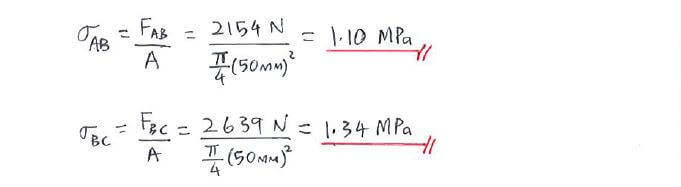

Calculate normal stress

Normal and Shear Stress solution step 2

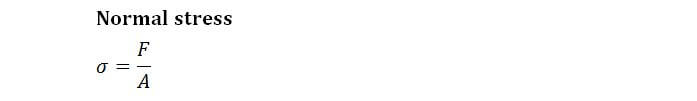

Useful formula:

Useful formula:

Normal and Shear Stress formula

Now that you've mastered this question, you can try Question 3.
