Example Question 2

Example Question 2

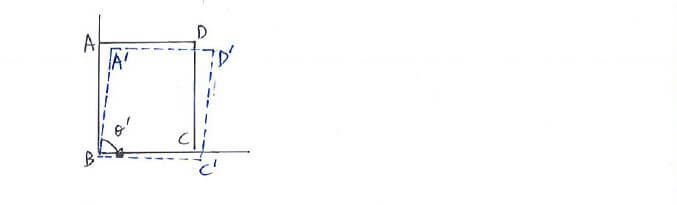

Deformation and Strain example question 2

Given that θ' = 80^o, calculate the shear strain in the block.

Given that θ = 80^o, calculate the shear strain in the block.

Click below to show answer. X

Step 1:
Calculate shear strain

Step 1:
Calculate shear strain

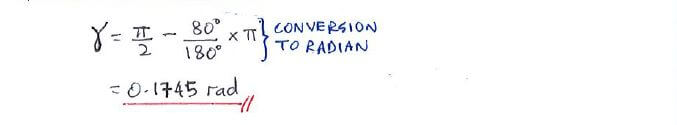

Deformation and Strain solution step 1

Useful formula:

Useful formula:

Deformation and Strain formula

Now that you've mastered this question, you can try Question 1.
