Example Question

Example Question

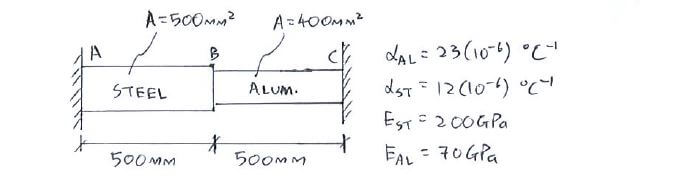

Thermal Deformation example question

If the temperature changes by ΔT = 30^o, determine the reactions in A and C.

If the temperature changes by ΔT = 30^o, determine the reactions in A and C.

Click below to show answer. X

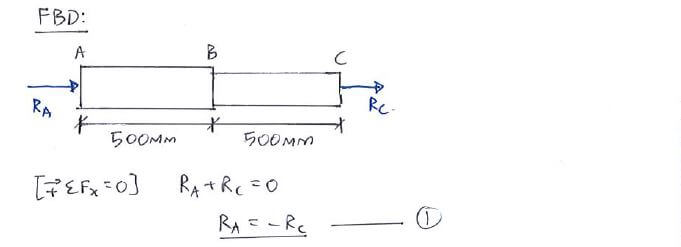

Step 1:
1st equation from [ΣF_x = 0]

Step 1:
1st equation from [ΣF_x = 0]

Thermal Deformation solution step 1

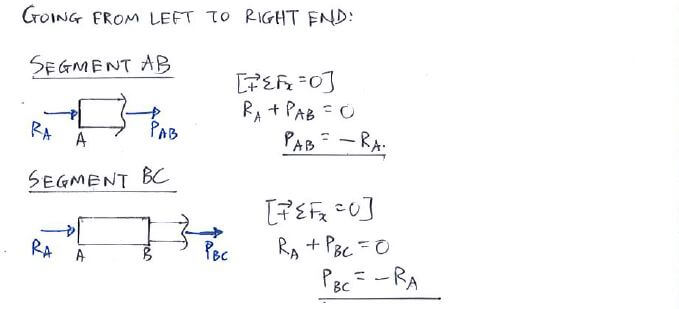

Step 2:
Determine axial loads P in terms of R_A and R_C

Step 2:
Determine axial loads P in terms of R_A and R_C

Thermal Deformation solution step 2

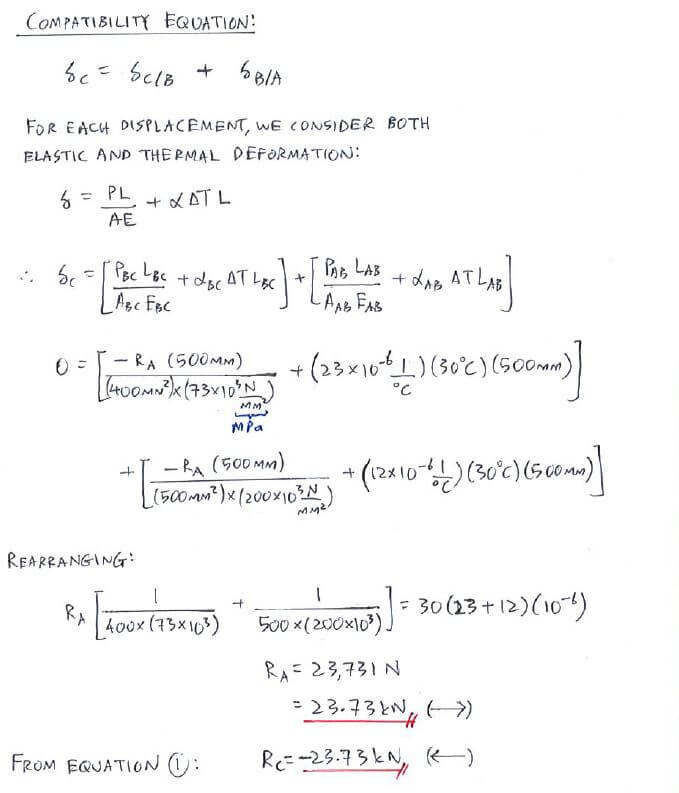

Step 3:
2nd equation from compatibility equation with thermal displacement; solve for R_A and R_C

Step 3:
2nd equation from compatibility equation with thermal displacement; solve for R_A and R_C

Thermal Deformation solution step 3

Useful formula:

Useful formula:

Thermal Deformation formula

Now that you've mastered this question, you can try Question 1.
