Example Question

Example Question

Torsion Formula example question

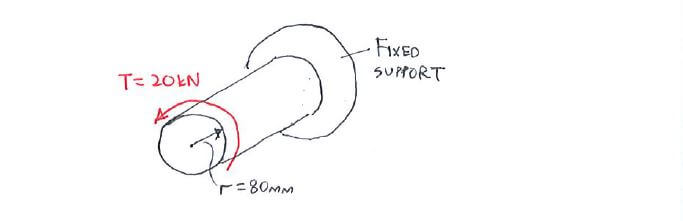

Find the shear stress due to the torque at:

r = 50 mm
r_max

Find the shear stress due to the torque at:

r = 50 mm
r_max

Click below to show answer. X

Step 1:
Calculate polar moment of inertia J

Step 1:
Calculate polar moment of inertia J

Torsion Formula solution step 1

Step 2:

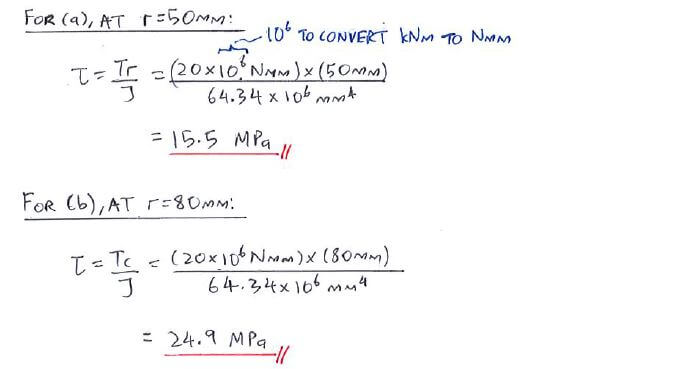

Calculate torsional shear stress

Step 2:
Calculate torsional shear stress

Torsion Formula solution step 2

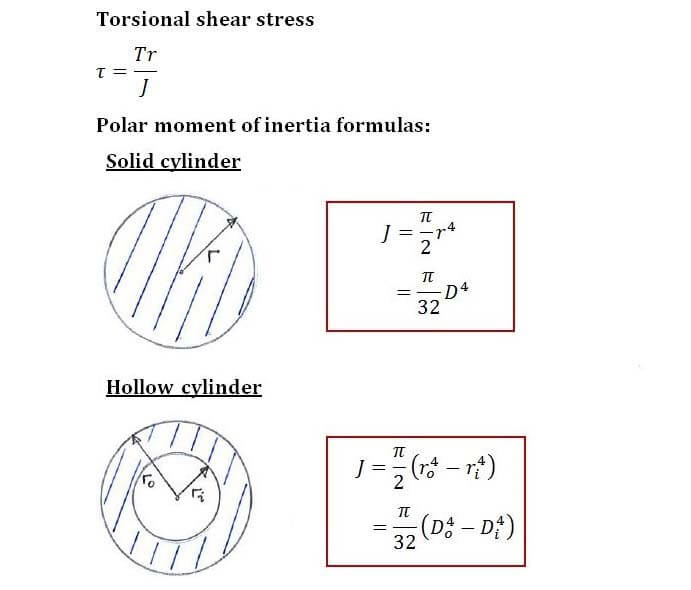

Useful formula:

Useful formula:

Torsion Formula

Now that you've mastered this question, you can try Question 1.
