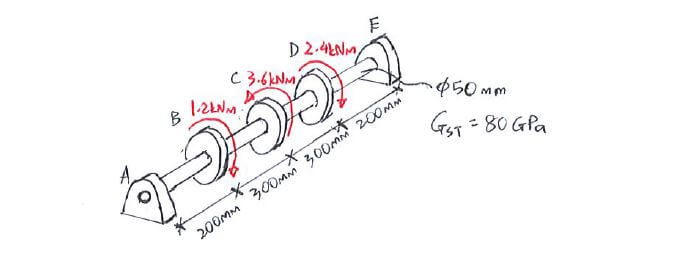

Angle of Twist question 2

Calculate the angle of twist at B with respect to D.

Calculate the angle of twist at B with respect to D.

Click below to show answer. X

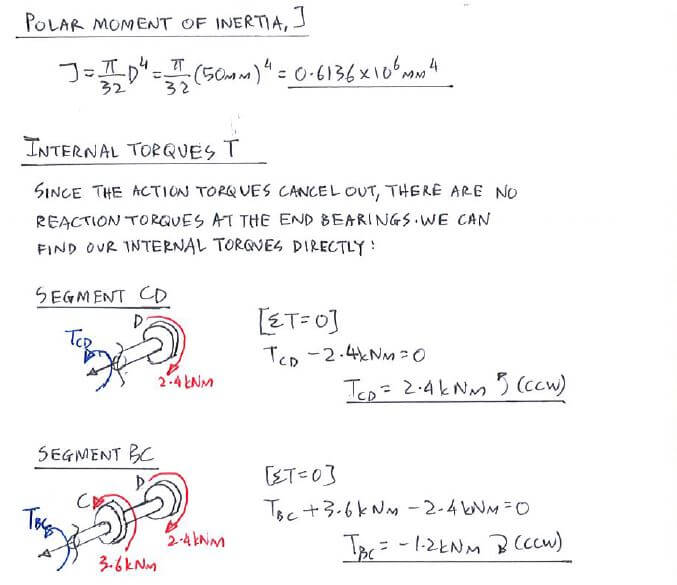

Step 1:
Calculate polar moment of inertia J and internal torques T

Step 1:
Calculate polar moment of inertia J and internal torques T

Angle of Twist solution step 1

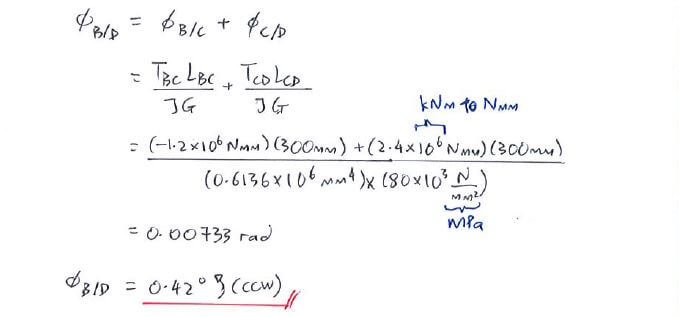

Step 2:
Calculate angle of twist Φ_B/D

Step 2:
Calculate angle of twist Φ_B/D

Angle of Twist solution step 2

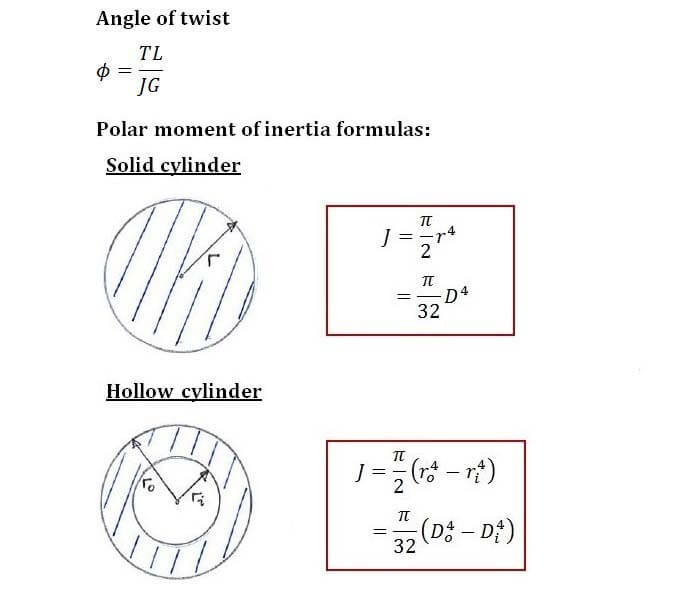

Useful formula:

Useful formula:

Angle of Twist formula

Congratulations! You've completed all the questions in this topic. Let's look at C3.4: Statically Indeterminate Analysis with Torque now.
