Statically Indeterminate Analysis with Torque example question

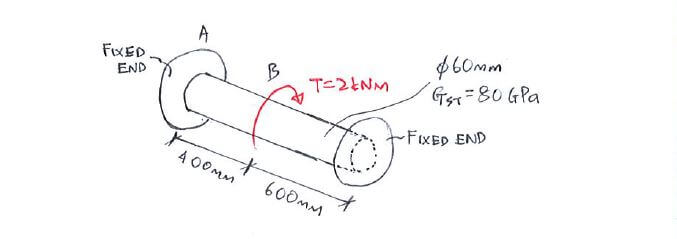

Shaft ABC is fixed at both ends. Determine the torque reactions at A and C.

Shaft ABC is fixed at both ends. Determine the torque reactions at A and C.

Click below to show answer. X

Step 1:
Calculate polar moment of inertia J

Step 1:
Calculate polar moment of inertia J

Statically Indeterminate Analysis with Torque solution step 1

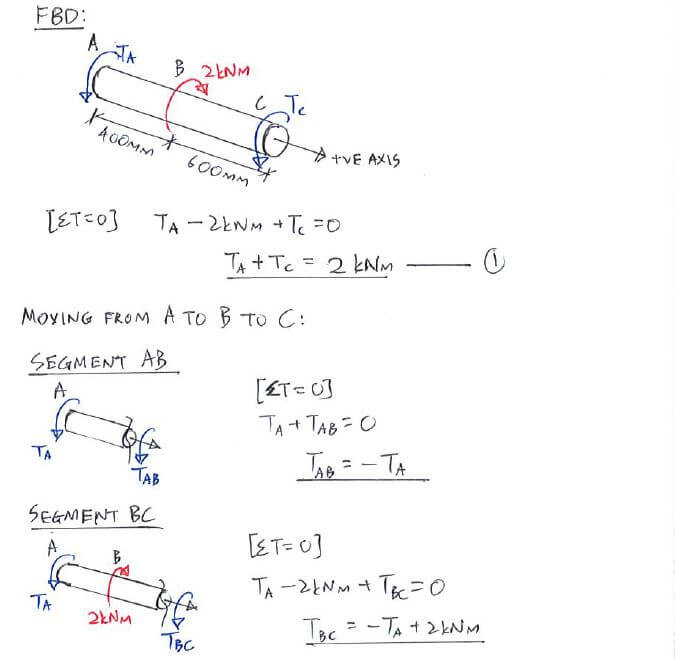

Step 2:
1st equation: [ΣT = 0]; find internal torques T in terms of T_A and T_C

Step 2:
1st equation: [ΣT = 0]; find internal torques T in terms of T_A and T_C

Statically Indeterminate Analysis with Torque solution step 2

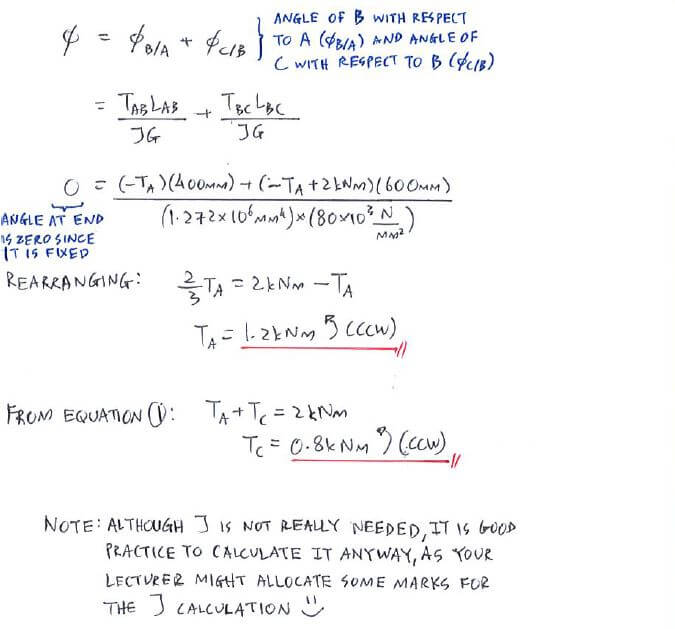

Step 3:
2nd equation: compatibility equation; solve for T_A and T_C

Step 3:
2nd equation: compatibility equation; solve for T_A and T_C

Statically Indeterminate Analysis with Torque solution step 3

Useful formula:

Useful formula:

Statically Indeterminate Analysis with Torque formula

Now that you've mastered this question, you can try Question 1.
