Click below to show answer.
X

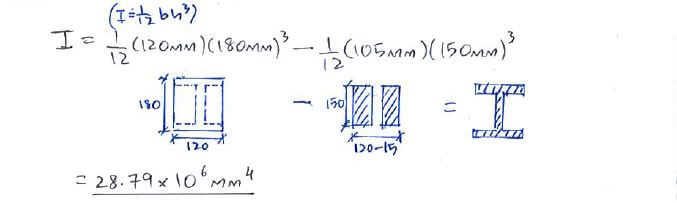

Step 1: Calculate moment of inertia I
Step 1: Calculate moment of inertia I
|
|
|

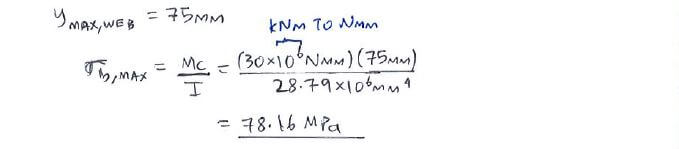

Step 2: Calculate maximum bending stress σb,max in the web
Step 2: Calculate maximum bending stress σb,max in the web
|
|
|

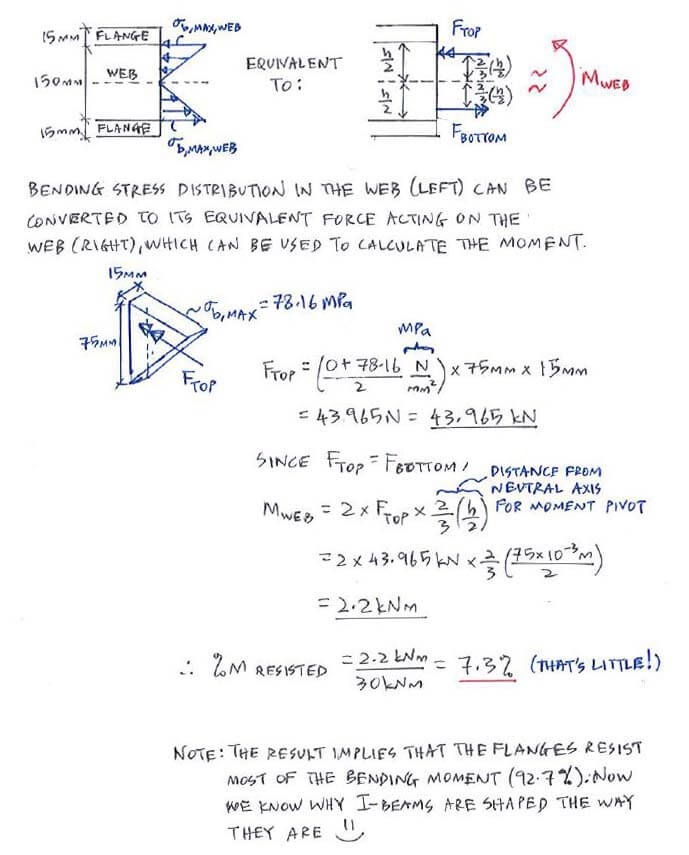

Step 3: Calculate moment in the web due to σb
Step 3: Calculate moment in the web due to σb
|
|
|
|

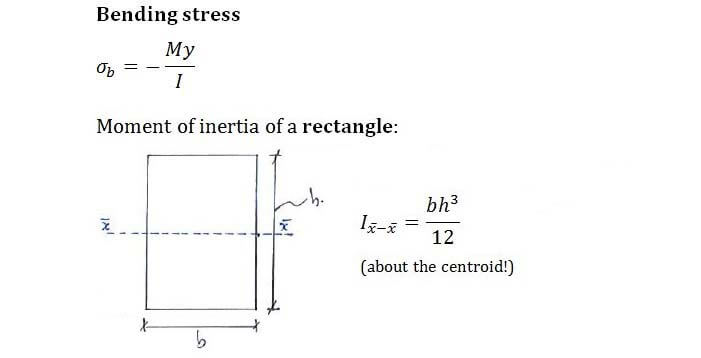

Useful formula:
Useful formula:
|
|
|
Now that you've mastered this question, you can try Question 3.
