Question 3

Question 3

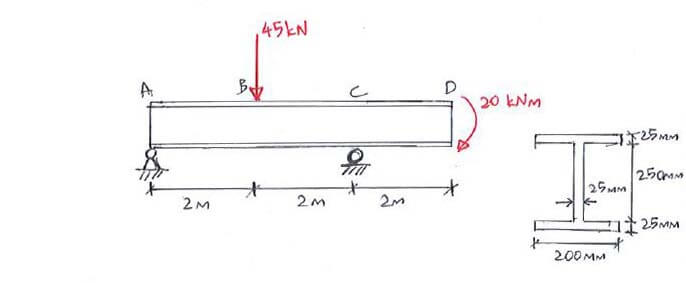

Flexure Formula question 3

Determine the maximum bending stress developed in the beam.

Determine the maximum bending stress developed in the beam.

Click below to show answer. X

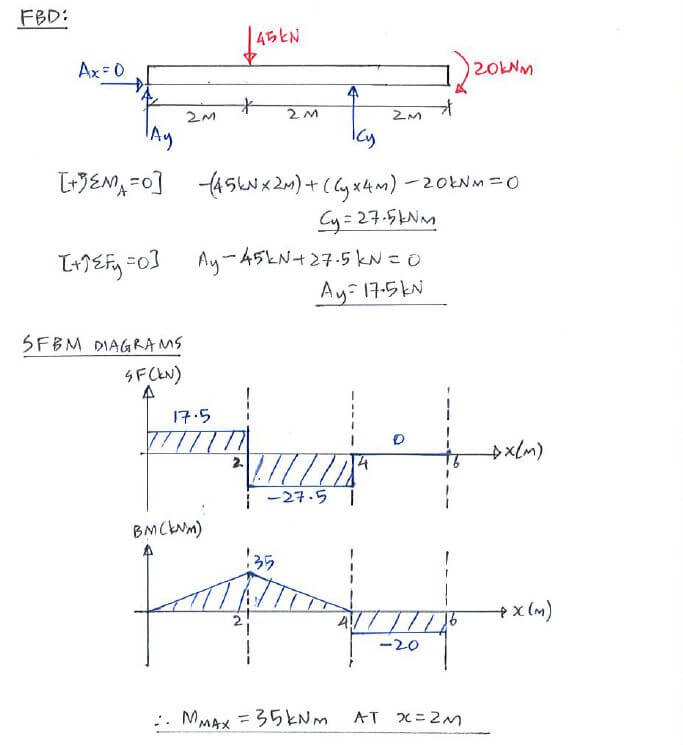

Step 1:
Construct FBD and SFBM diagrams, obtain M_max along the beam

Step 1:
Construct FBD and SFBM diagrams, obtain M_max along the beam

Flexure Formula solution step 1

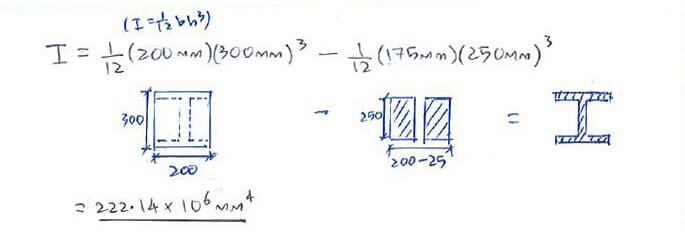

Step 2:
Calculate moment of inertia I

Step 2:
Calculate moment of inertia I

Flexure Formula solution step 2

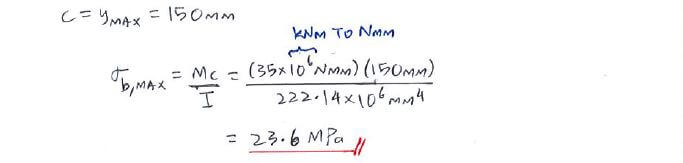

Step 3:
Calculate maximum bending stress σ_b,max

Step 3:
Calculate maximum bending stress σ_b,max

Flexure Formula solution step 3

Useful formula:

Useful formula:

Flexure Formula formula

Congratulations! You've completed all the questions in this topic. Let's look at C5: Transverse Shear now.
