Click below to show answer.
X

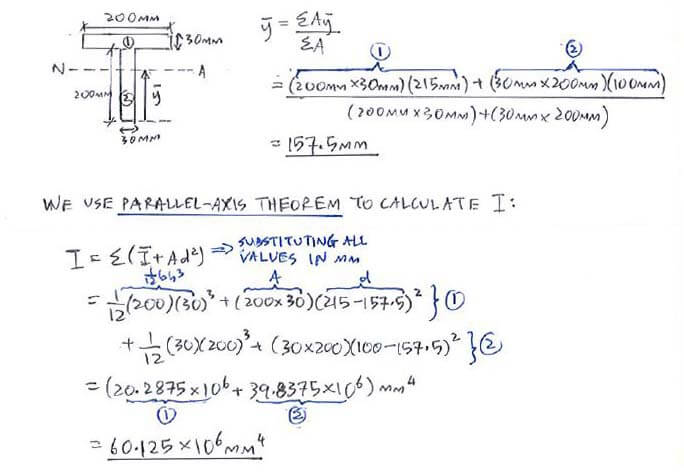

Step 1: Calculate centroid ȳ moment of inertia I
Step 1: Calculate centroid ȳ moment of inertia I
|
|
|

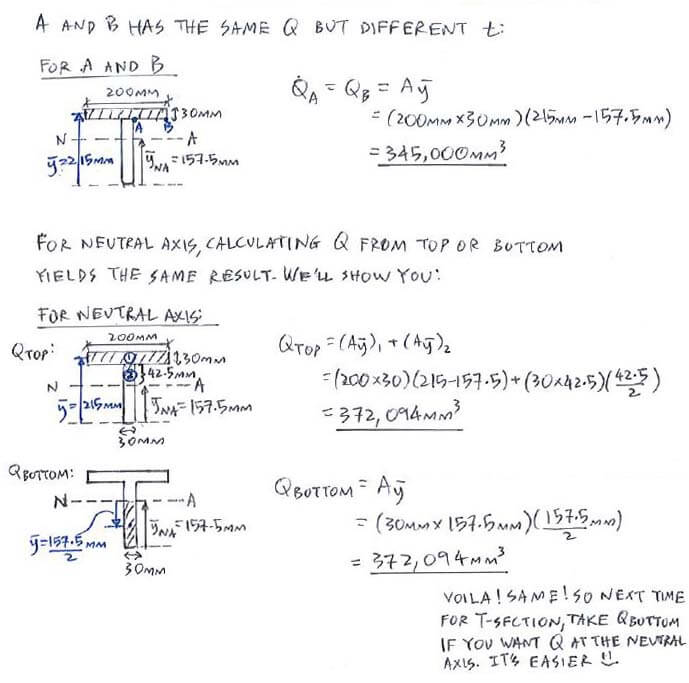

Step 2: Calculate Q at A, B and neutral-axis
Step 2: Calculate Q at A, B and neutral-axis
|
|
|

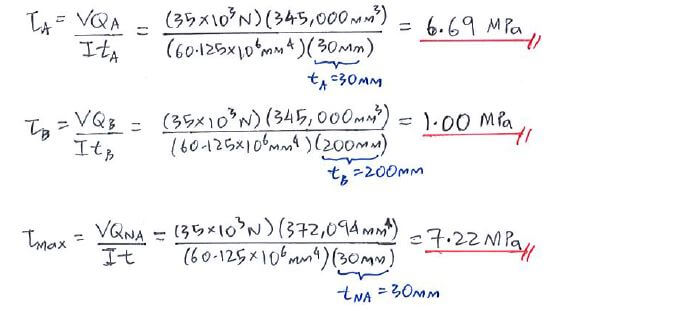

Step 3: Calculate transverse shear stress
Step 3: Calculate transverse shear stress
|
|
|
|

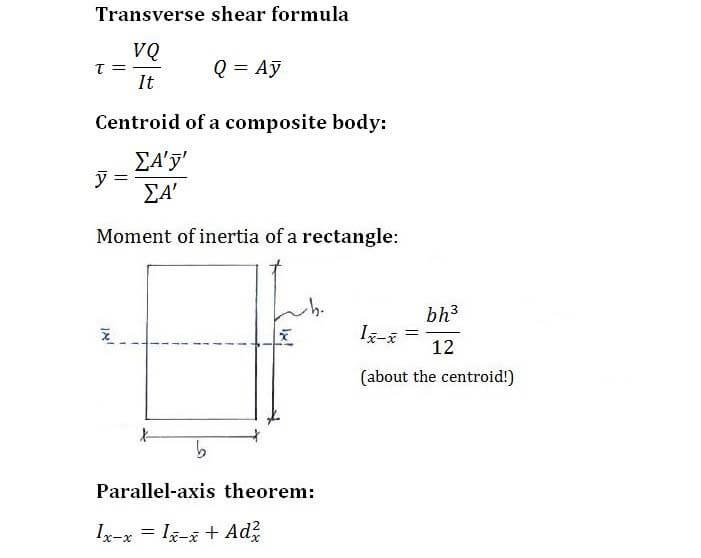

Useful formula:
Useful formula:
|
|
|
Now that you've mastered this question, you can try Question 2.
