Thin-Walled Pressure Vessels example question

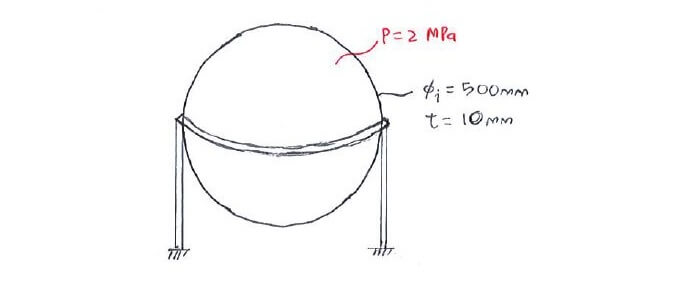

Calculate the hoop and longitudinal stresses in the spherical vessel. Also compute the radial stress at the mid-thickness.

Calculate the hoop and longitudinal stresses in the spherical vessel. Also compute the radial stress at the mid-thickness.

Click below to show answer. X

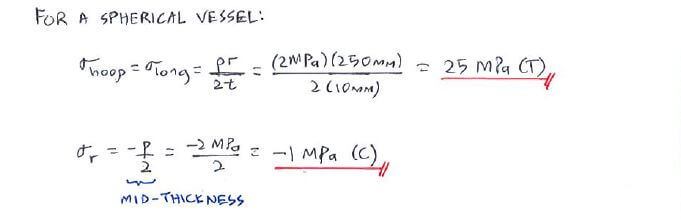

Step 1:
Use formulas to calculate σ_hoop, σ_long, σ_r

Step 1:
Use formulas to calculate σ_hoop, σ_long, σ_r

Thin-Walled Pressure Vessels solution step 1

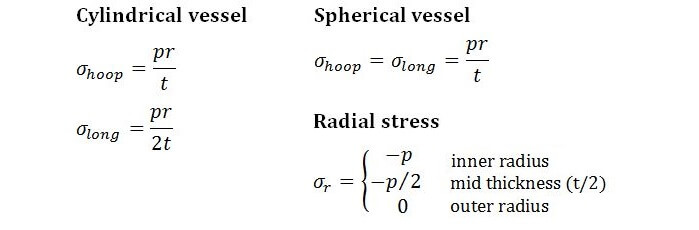

Useful formula:

Useful formula:

Thin-Walled Pressure Vessels formula

Now that you've mastered this question, you can try Question 1.
