Click below to show answer.
X

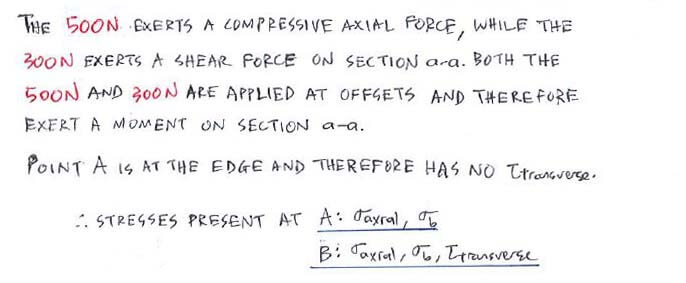

Step 1: Determine the stresses that are present at A and B
Step 1: Determine the stresses that are present at A and B
|
|
|

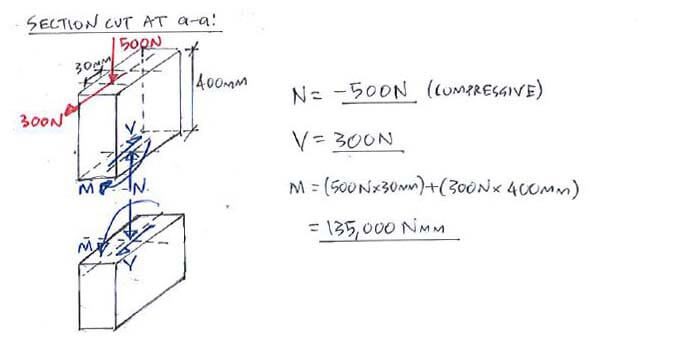

Step 2: Calculate the internal forces at A and B
Step 2: Calculate the internal forces at A and B
|
|
|

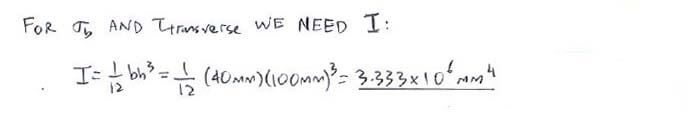

Step 3: Calculate section properties ( I)
Step 3: Calculate section properties ( I)
|
|
|

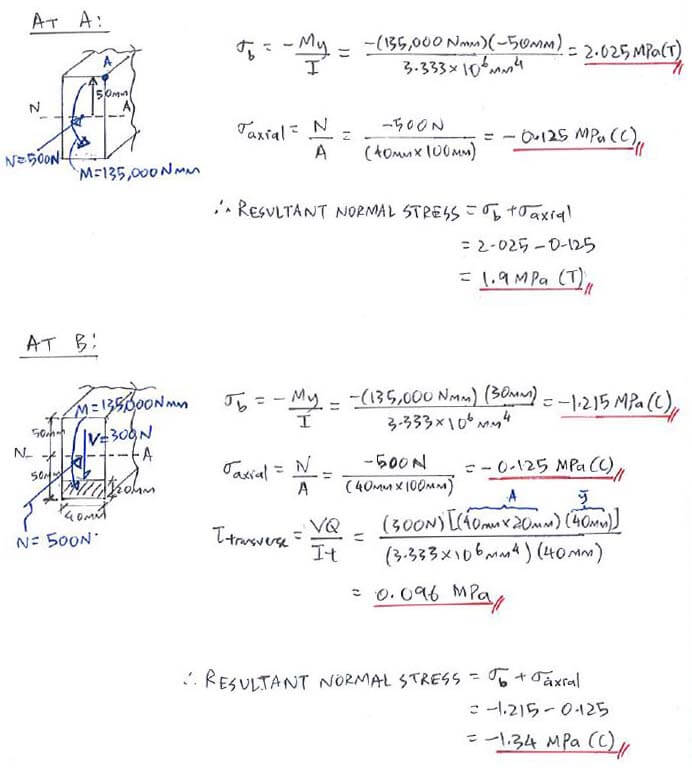

Step 4: Calculate stresses at A and B
Step 4: Calculate stresses at A and B
|
|
|
|

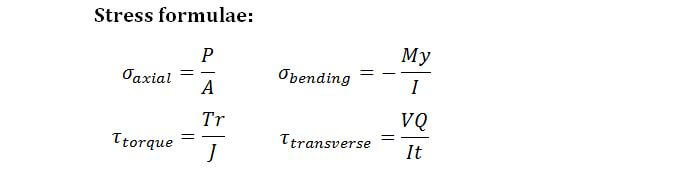

Useful formula:
Useful formula:
|
|
|
Now that you've mastered this question, you can try Question 3.
