Example Question

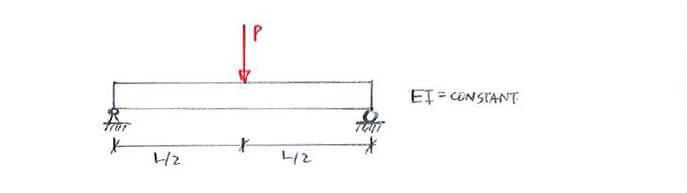

Same question as Question 2 of Chapter 9.1. Obtain a single elastic curve expression for the whole beam, using the Macaulay function. Also obtain the expression for the deflection at x = L/2.

Click below to show answer. X

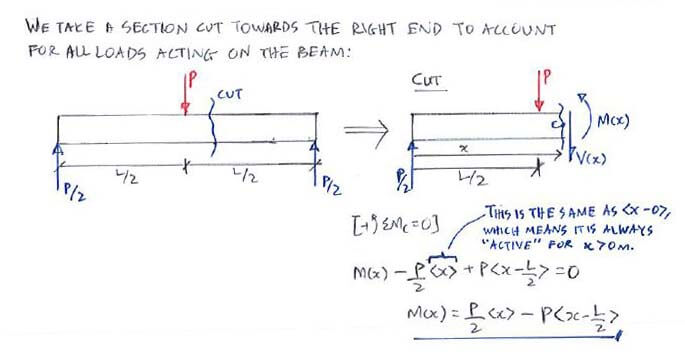

Step 1:
Section cut to get moment equation (with Macaulay brackets)

Step 1:
Section cut to get moment equation (with Macaulay brackets)

Discontinuity Functions (Macaulay’s Method) solution step 1

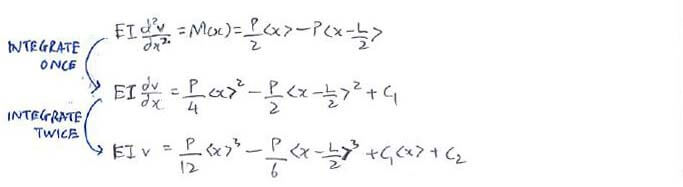

Step 2:
Integrate twice

Step 2:
Integrate twice

Discontinuity Functions (Macaulay’s Method) solution step 2

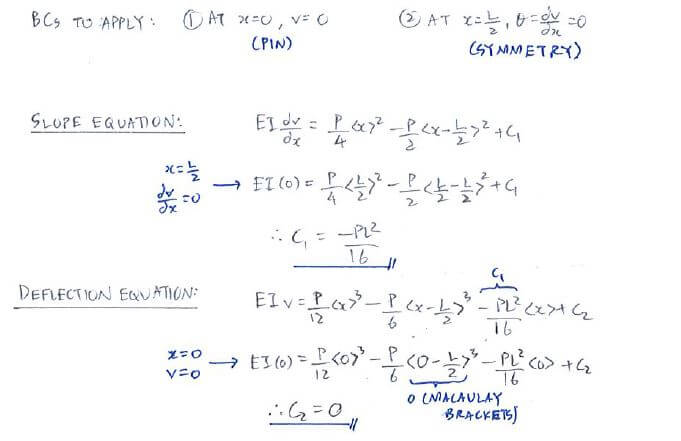

Step 3:
Apply boundary conditions (BCs) to get C₁ and C₂

Step 3:
Apply boundary conditions (BCs) to get C₁ and C₂

Discontinuity Functions (Macaulay’s Method) solution step 3

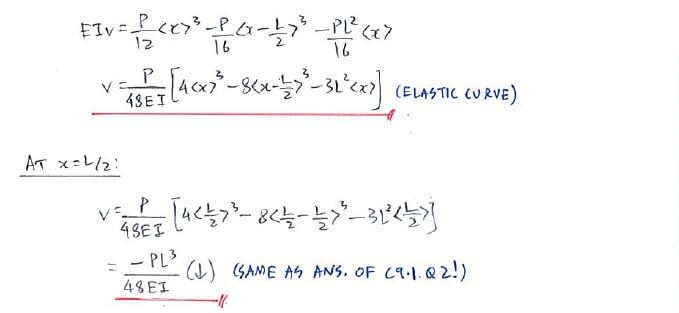

Step 4:
Final elastic curve equation, find ν at x = L/2

Step 4:
Final elastic curve equation, find ν at x = L/2

Discontinuity Functions (Macaulay’s Method) solution step 4

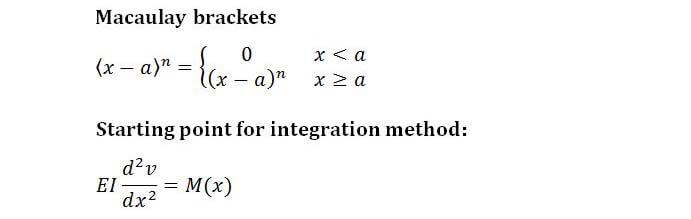

Useful formula:

Useful formula:

Discontinuity Functions (Macaulay’s Method) formula

Now that you've mastered this question, you can try Question 1.
