Be warned! This question is quite difficult, but solving it would mean that you've mastered this chapter, so its worth a try!

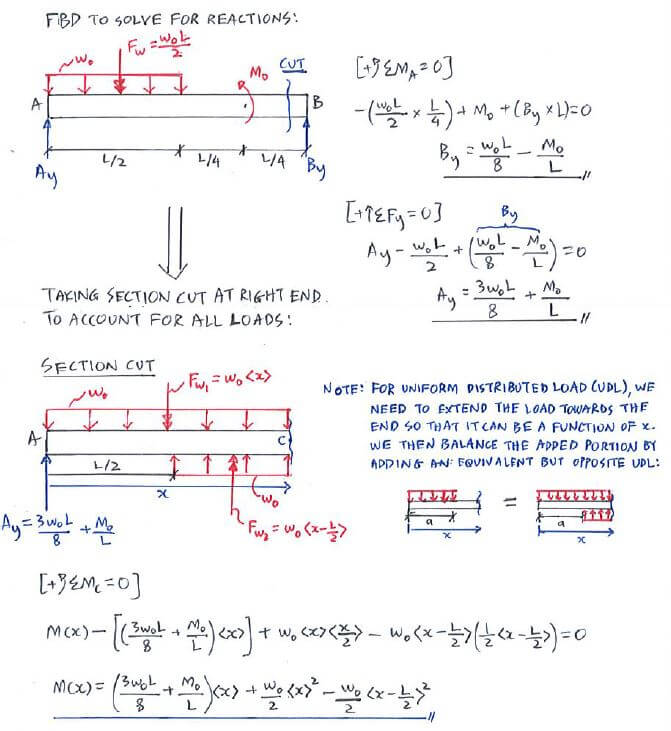

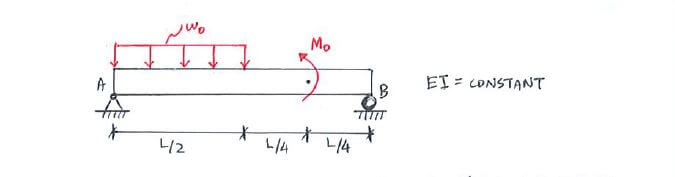

Obtain the elastic curve expression for the beam. Use the Macaulay function.
Be warned! This question is quite difficult, but solving it would mean that you've mastered this chapter, so its worth a try!
Obtain the elastic curve expression for the beam. Use the Macaulay function.
