Be warned! This question is difficult too, but solving it would mean that you've mastered this chapter, so do give it a go!

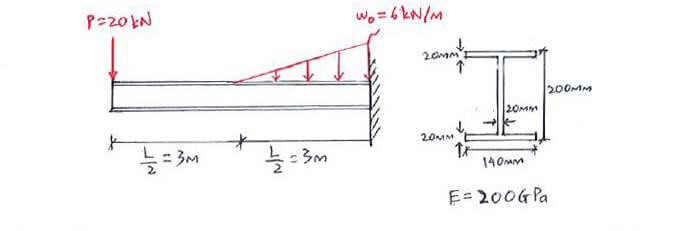

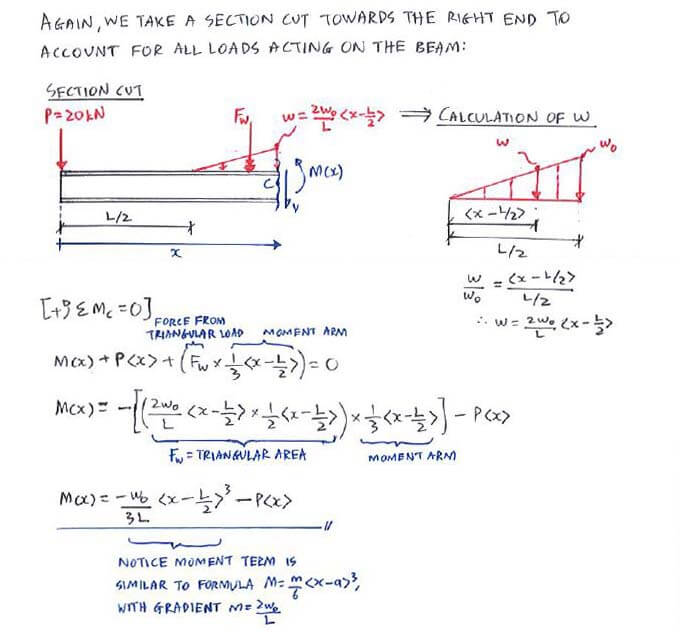

Obtain the elastic curve expression for the beam using the Macaulay function. Then calculate the deflection at the free-end of the cantilevered beam.
Be warned! This question is difficult too, but solving it would mean that you've mastered this chapter, so do give it a go!
Obtain the elastic curve expression for the beam using the Macaulay function. Then calculate the deflection at the free-end of the cantilevered beam.
