Question 1

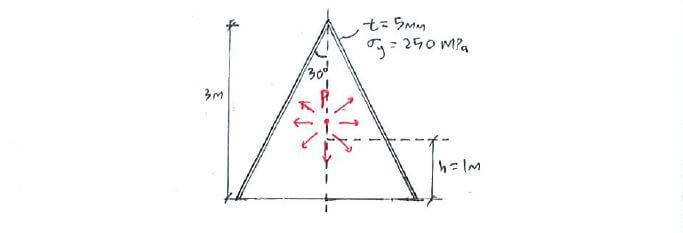

The figure shows an inverted cone tank subject to an internal pressure p. Find the maximum p it can take if the Tresca stress intensity is not to exceed σ_y at h = 1 m (at the inner surface).

Click below to show answer. X

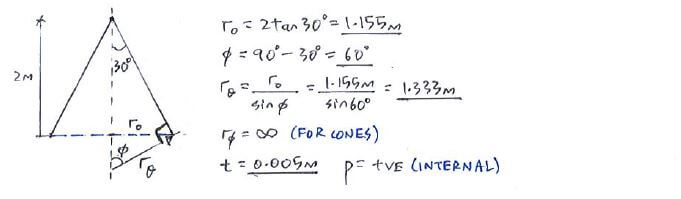

Step 1:
Get values for r_o, r_Φ, r_θ, Φ, t

Step 1:
Get values for r_o, r_Φ, r_θ, Φ, t

Membrane Stress Equation solution step 1

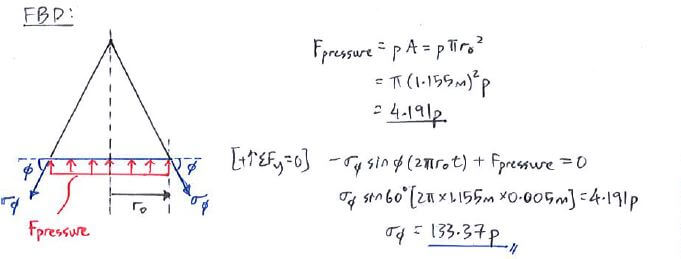

Step 2:
[+↑ΣF_y = 0], find σ_Φ

Step 2:
[+↑ΣF_y = 0], find σ_Φ

Membrane Stress Equation solution step 2

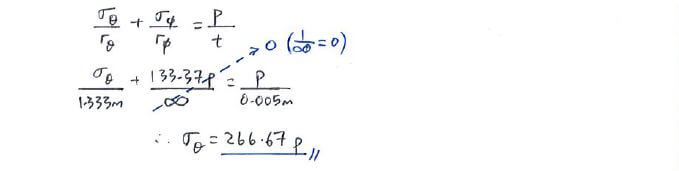

Step 3:
Membrane stress equation, find σ_θ

Step 3:
Membrane stress equation, find σ_θ

Membrane Stress Equation solution step 3

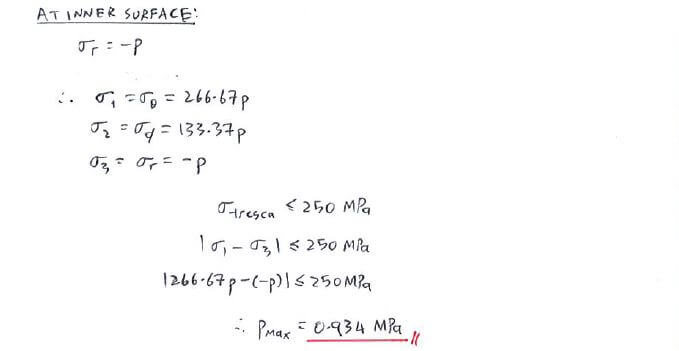

Step 4:
Find p_max for σ_tresca ≤ 250 MPa

Step 4:
Find p_max for σ_tresca ≤ 250 MPa

Membrane Stress Equation solution step 4

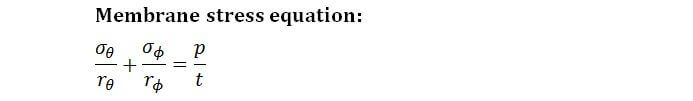

Useful formula:

Useful formula:

Now that you've mastered this question, you can try Question 2.
