Question 2

Membrane Stress Equation example question

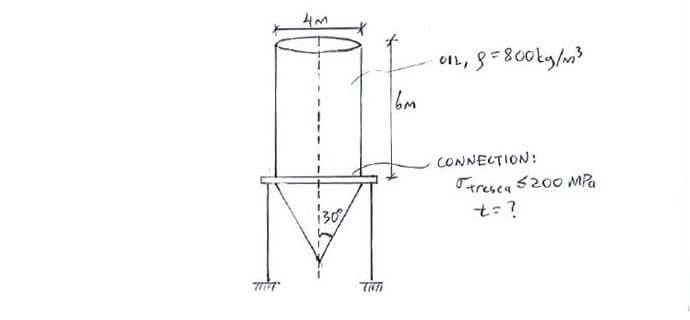

The hopper tank above is used to store oil. Determine the minimum thickness t at the connection of the conical and cylindrical section of the tank, if the Tresca stress intensity is not to exceed 200 MPa. Consider the inner surface of the tank.

Click below to show answer. X

Step 1:
Get values for r_o, r_Φ, r_θ, Φ, p

Step 1:
Get values for r_o, r_Φ, r_θ, Φ, p

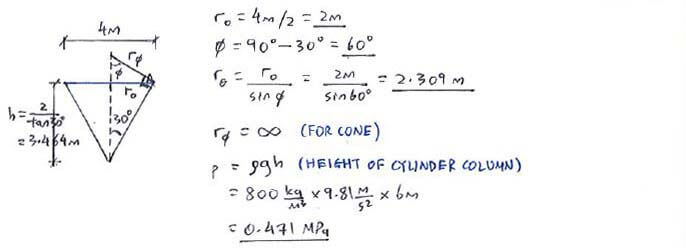

Membrane Stress Equation solution step 1

Step 2:
[+↑ΣF_y = 0], find σ_Φ

Step 2:
[+↑ΣF_y = 0], find σ_Φ

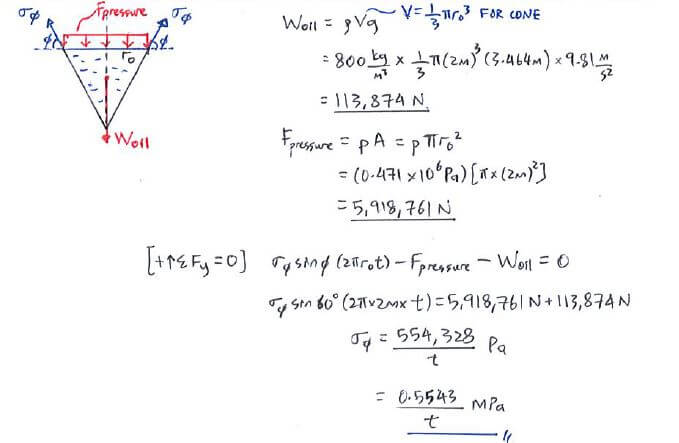

Membrane Stress Equation solution step 2

Step 3:
Membrane stress equation, find σ_θ

Step 3:
Membrane stress equation, find σ_θ

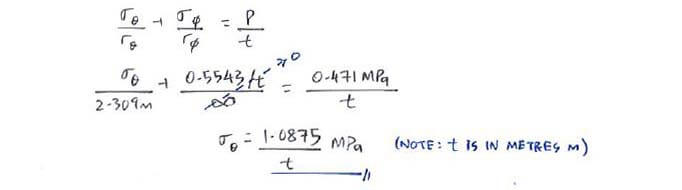

Membrane Stress Equation solution step 3

Step 4:
Find t_min for σ_tresca ≤ 200 MPa

Step 4:
Find t_min for σ_tresca ≤ 200 MPa

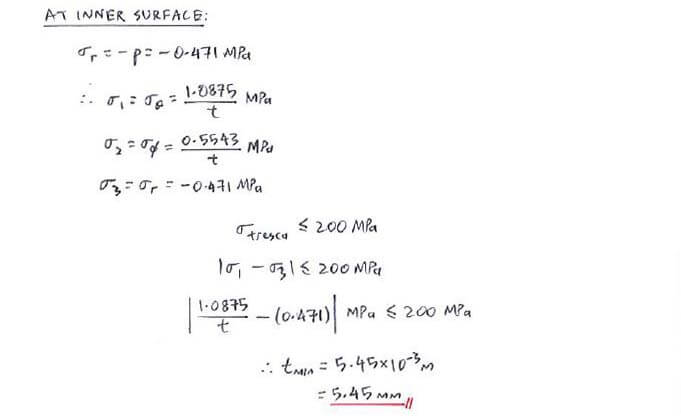

Membrane Stress Equation solution step 4

Useful formula:

Useful formula:

Congratulations! You've completed all the questions in this topic. Let's look at C1.2: Toroidal Shells now.

Question 2

Question 2

Step 1: Get values for ro, rΦ, rθ, Φ, p Step 1: Get values for ro, rΦ, rθ, Φ, p

Step 2: [+↑ΣFy = 0], find σΦ Step 2: [+↑ΣFy = 0], find σΦ

Step 3: Membrane stress equation, find σθ Step 3: Membrane stress equation, find σθ

Step 4: Find tmin for σtresca ≤ 200 MPa Step 4: Find tmin for σtresca ≤ 200 MPa

Useful formula: Useful formula:
