Question 1

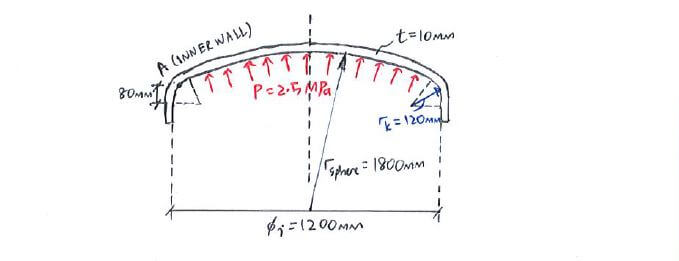

Calculate the principal stresses σ_θ, σ_Φ, σ_r at A, which sits at the inner wall of the shell. Also calculate the principal stresses in the spherical end-cap and cylindrical wall region, at the inner wall.

Click below to show answer. X

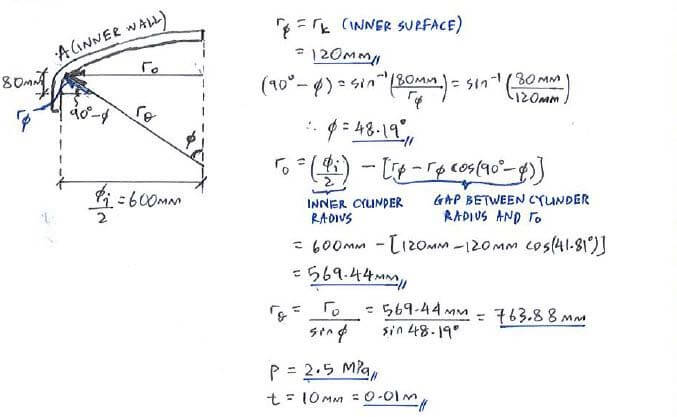

Step 1:
Get values for r_o, r_Φ, r_θ, Φ, p, t

Step 1:
Get values for r_o, r_Φ, r_θ, Φ, p, t

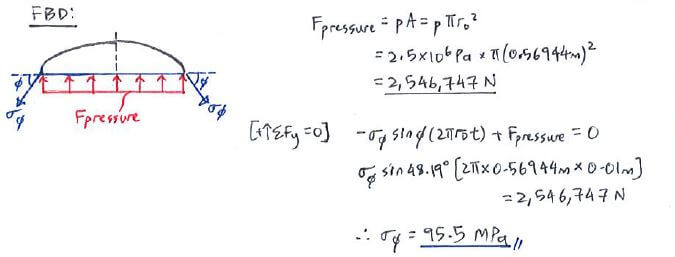

Step 2:
[+↑ΣF_y = 0], find σ_Φ

Step 2:
[+↑ΣF_y = 0], find σ_Φ

Step 3:
Membrane stress equation, find σ_θ

Step 3:
Membrane stress equation, find σ_θ

Step 4:
Principal stresses of knuckle joint, end cap, cylinder

Step 4:
Principal stresses of knuckle joint, end cap, cylinder

Useful formula:

Useful formula:

Congratulations! You've completed all the questions in this topic. Let's look at C2: Bending now.
