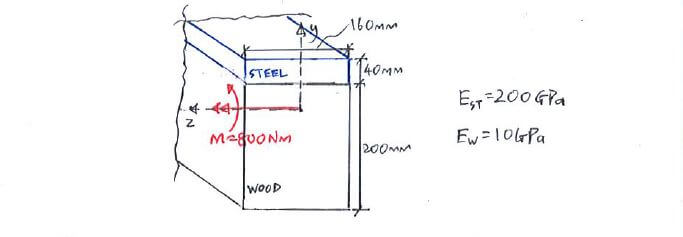

Composite Beams example question

Find the maximum bending stress σ_b,max developed in the steel and wood region of the cross-section.

Find the maximum bending stress σ_b,max developed in the steel and wood region of the cross-section.

Click below to show answer. X

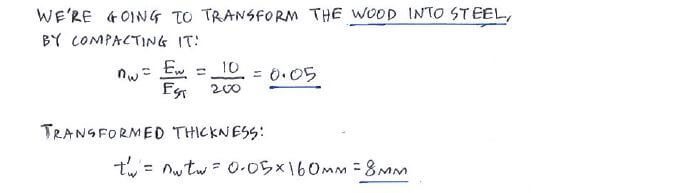

Step 1:
Determine the transformation of the composite beam

Step 1:
Determine the transformation of the composite beam

Composite Beams solution step 1

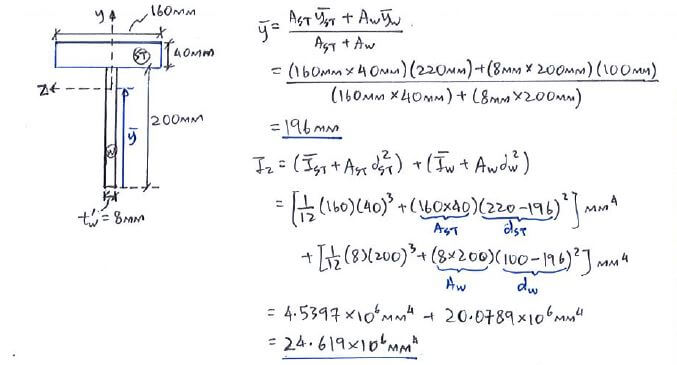

Step 2:
Calculate section properties (ȳ, I_z)

Step 2:
Calculate section properties (ȳ, I_z)

Composite Beams solution step 2

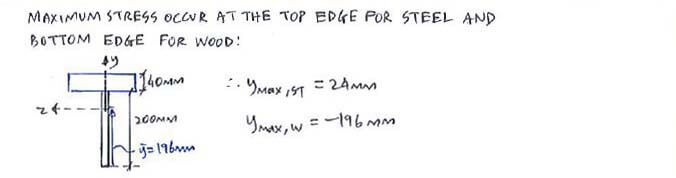

Step 3:
Calculate maximum bending stress (σ_{st max} and σ_{b,w max})

Step 3:
Calculate maximum bending stress (σ_{st max} and σ_{b,w max})

Composite Beams solution step 3

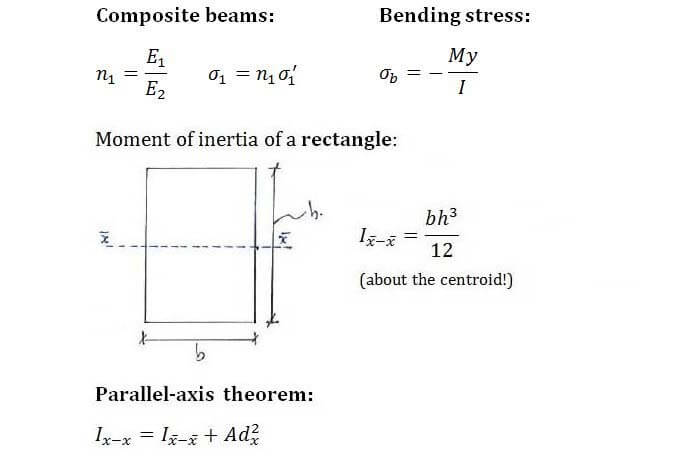

Useful formula:

Useful formula:

Composite Beams formula

Now that you've mastered this question, you can try Question 1.
