Composite Beams question 1

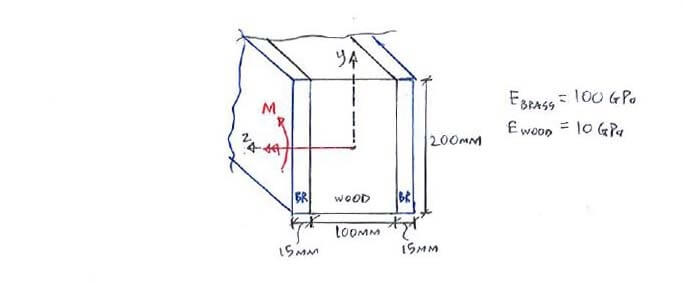

The composite beam is made of a wooden core with brass plates attached to the sides. If σ_max,wood = 10 MPa and σ_max,brass = 150 MPa, calculate the maximum M that can be applied.

The composite beam is made of a wooden core with brass plates attached to the sides. If σ_max,wood = 10 MPa and σ_max,brass = 150 MPa, calculate the maximum M that can be applied.

Click below to show answer. X

Step 1:

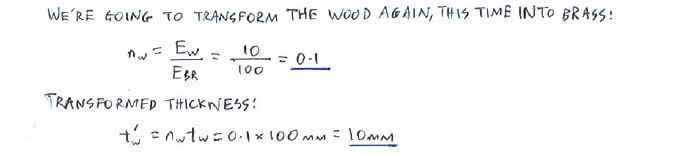

Determine the transformation of the composite beam

Step 1:
Determine the transformation of the composite beam

Composite Beams solution step 1

Step 2:
Calculate section properties (I_z)

Step 2:

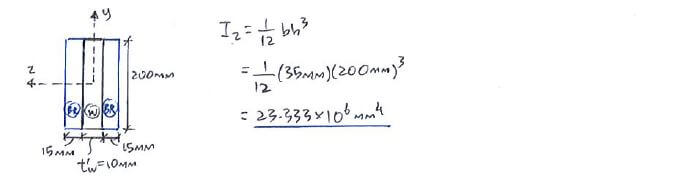

Calculate section properties (I_z)

Composite Beams solution step 2

Step 3:

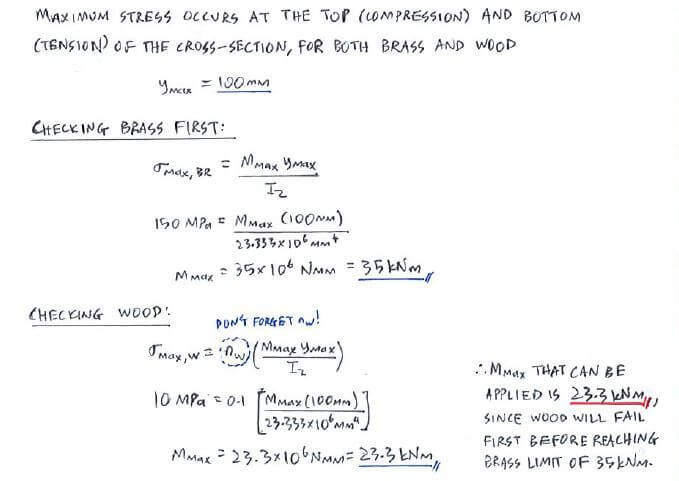

Use bending formula to calculate M_max

Step 3:
Use bending formula to calculate M_max

Composite Beams solution step 3

Useful formula:

Useful formula:

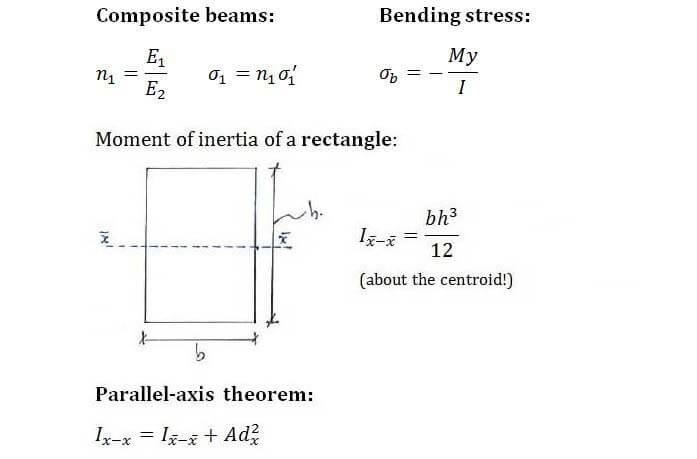

Composite Beams formula
