Example Question

Example Question

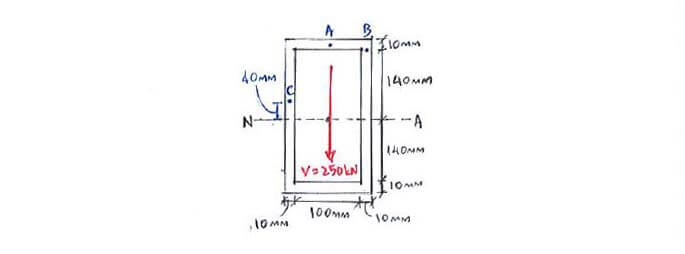

Shear Flow example question

Find the shear flow q acting on points A, B and C.

Find the shear flow q acting on points A, B and C.

Click below to show answer. X

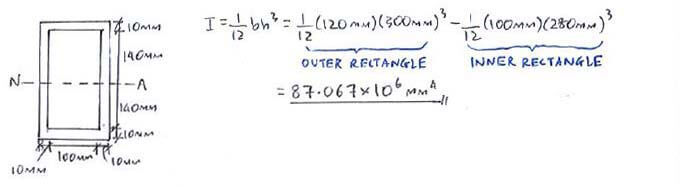

Step 1:
Calculate moment of inertia I

Step 1:
Calculate moment of inertia I

Shear Flow solution step 1

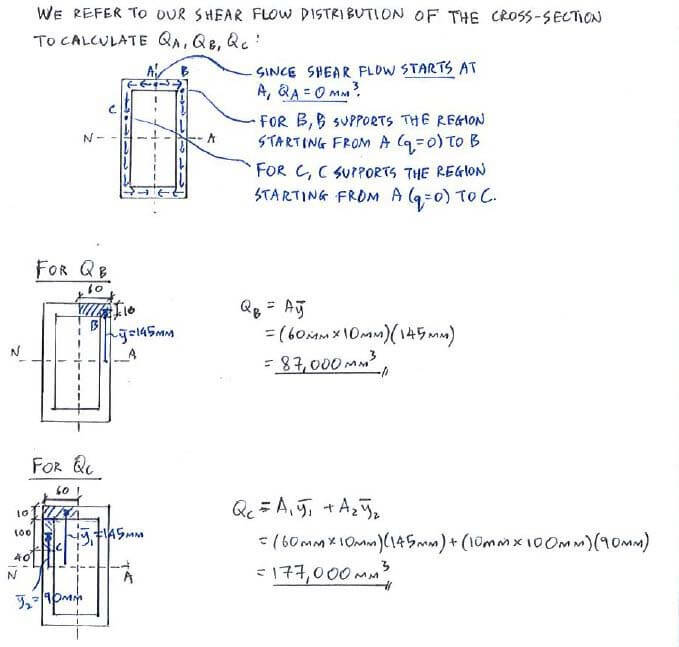

Step 2:
Calculate Q at A, B, C by referring to shear flow distribution

Step 2:
Calculate Q at A, B, C by referring to shear flow distribution

Shear Flow solution step 2

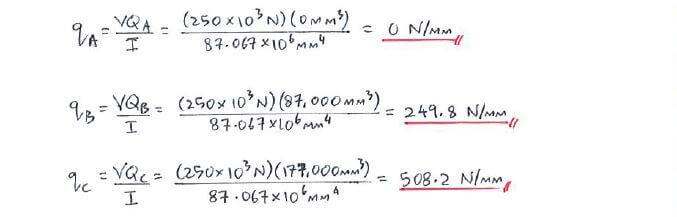

Step 3:
Calculate shear flow q for A, B and C

Step 3:
Calculate shear flow q for A, B and C

Shear Flow solution step 3

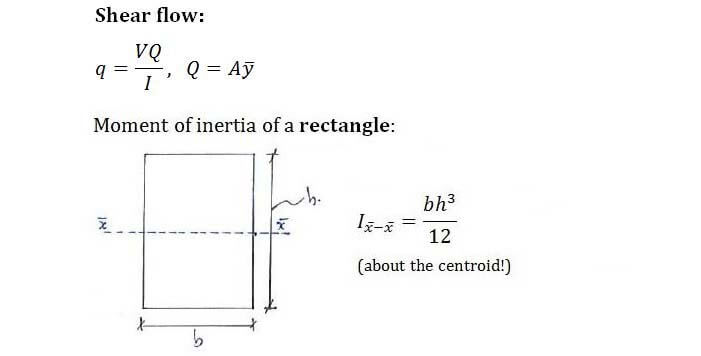

Useful formula:

Useful formula:

Shear Flow formula

Now that you've mastered this question, you can try Question 1.
