Shear Flow question 1

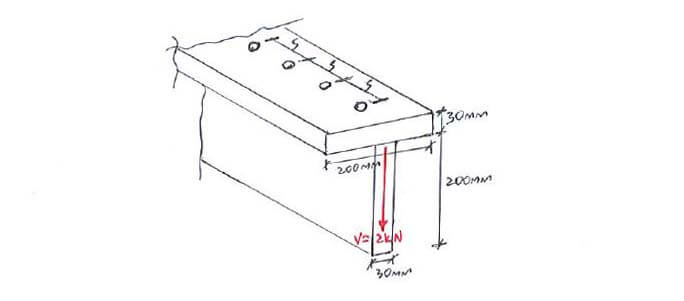

The T-section above is made by nailing two planks of wood together. If each nail can take a shear force of V_nail = 500N, find the maximum spacing s for each nail.

The T-section above is made by nailing two planks of wood together. If each nail can take a shear force of V_nail = 500N, find the maximum spacing s for each nail.

Click below to show answer. X

Step 1:
Calculate ȳ and moment of inertia I

Step 1:
Calculate ȳ and moment of inertia I

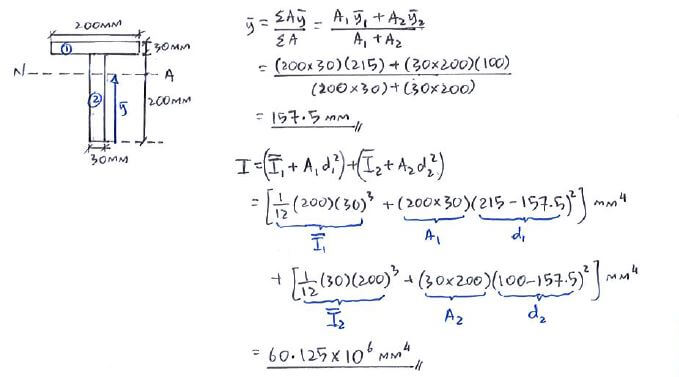

Shear Flow solution step 1

Step 2:
Calculate Q at nail joint

Step 2:
Calculate Q at nail joint

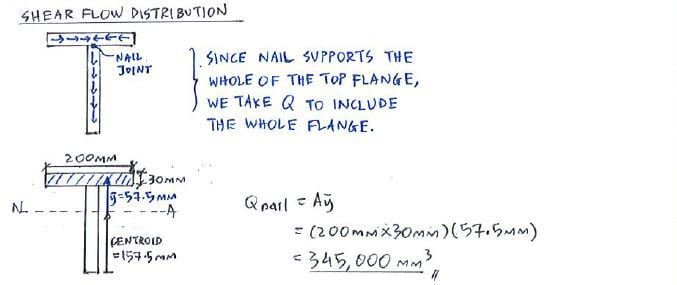

Shear Flow solution step 2

Step 3:
Use shear flow q to determine maximum spacing s

Step 3:
Use shear flow q to determine maximum spacing s

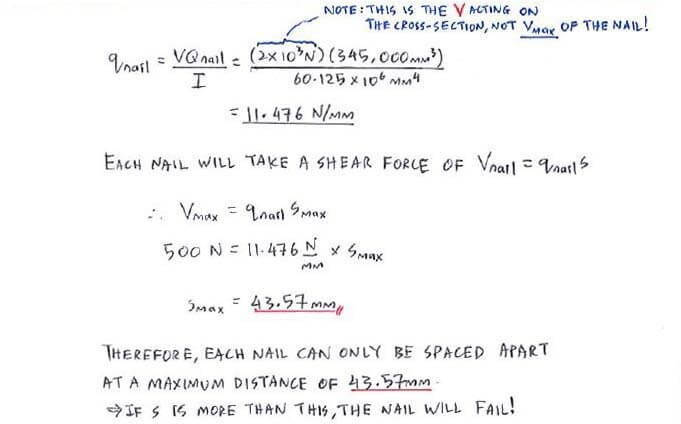

Shear Flow solution step 3

Useful formula:

Useful formula:

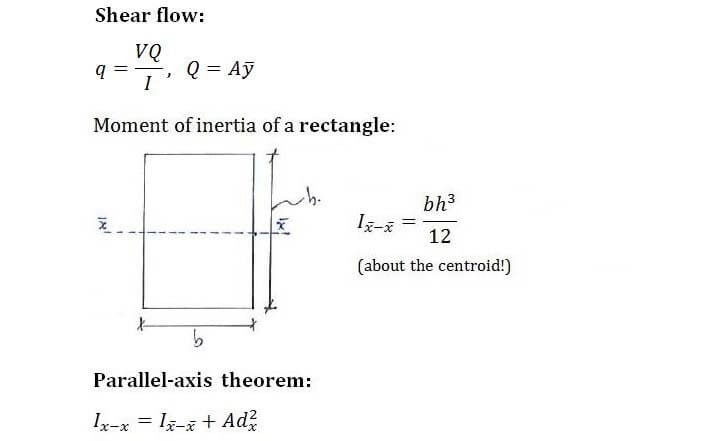

Shear Flow formula

Now that you've mastered this question, you can try Question 2.
