Shear Flow question 3

Determine the magnitude of the shear force caused by the shear flow in region AB of the I-section.

Determine the magnitude of the shear force caused by the shear flow in region AB of the I-section.

Click below to show answer. X

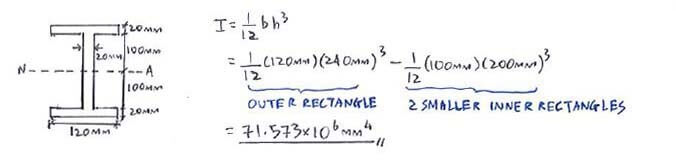

Step 1:
Calculate moment of inertia I

Step 1:
Calculate moment of inertia I

Shear Flow solution step 1

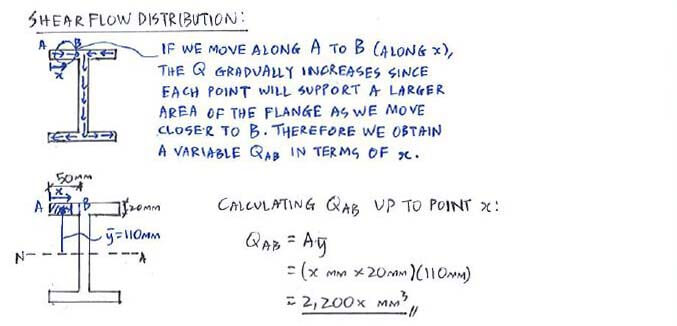

Step 2:
Obtain expression for variable Q_AB

Step 2:
Obtain expression for variable Q_AB

Shear Flow solution step 2

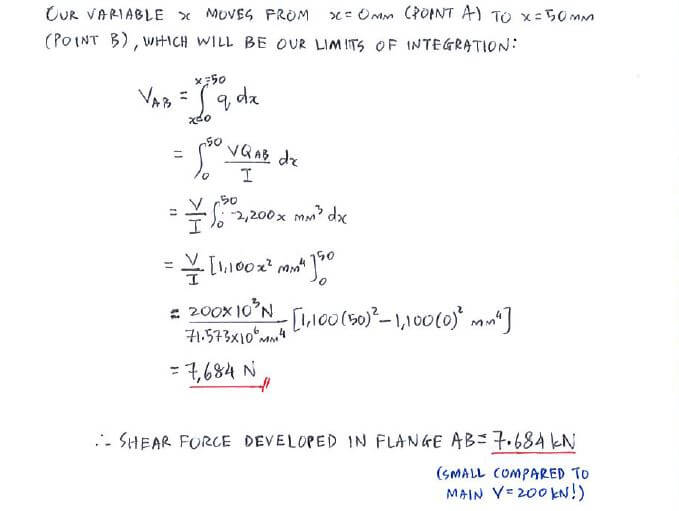

Step 3:
Use V = ∫q dx to calculate shear force in AB

Step 3:
Use V = ∫q dx to calculate shear force in AB

Shear Flow solution step 3

Useful formula:

Useful formula:

Shear Flow formula

Congratulations! You've completed all the questions in this topic. Let's look at C3.2: Shear Centre now.
