Question 2

Question 2

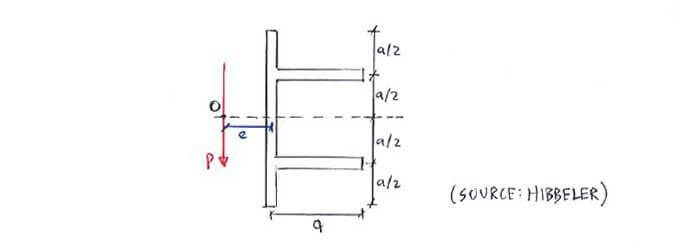

Shear Centre question 1

Determine the location of the shear centre e.

Determine the location of the shear centre e.

Click below to show answer. X

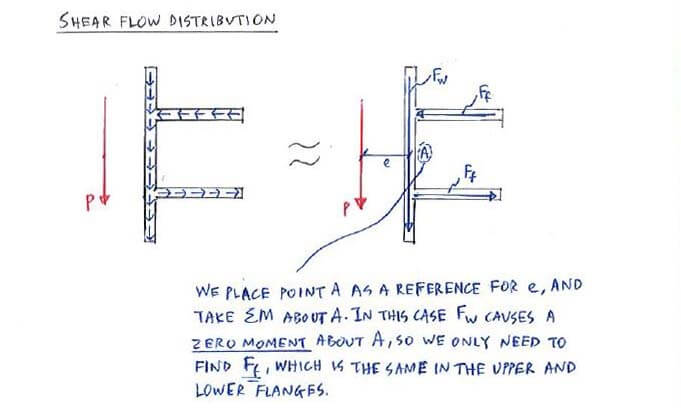

Step 1:
Identify forces required for ΣM = Pe

Step 1:
Identify forces required for ΣM = Pe

Shear Centre solution step 1

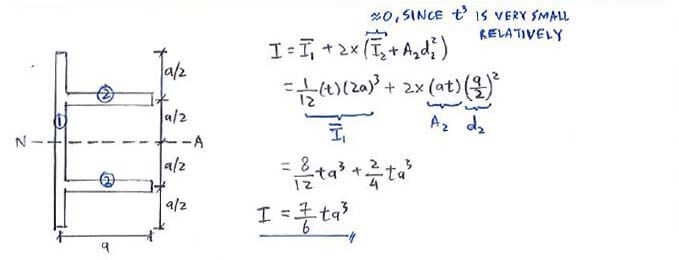

Step 2:
Obtain an expression for the moment of inertia I

Step 2:
Obtain an expression for the moment of inertia I

Shear Centre solution step 2

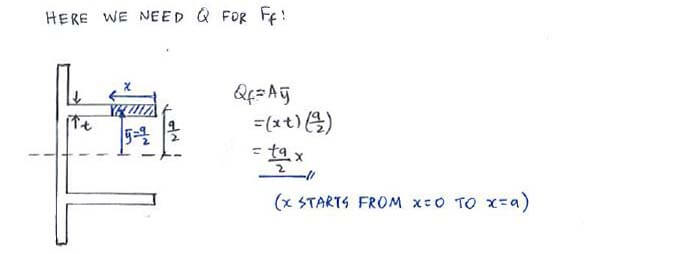

Step 3:
Obtain variable Q (as a function of y) for the members

Step 3:
Obtain variable Q (as a function of y) for the members

Shear Centre solution step 3

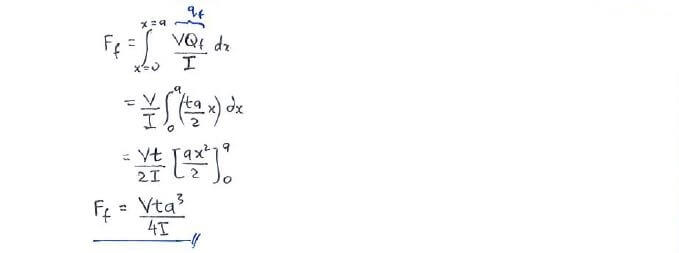

Step 4:
Use V = ∫q ds to calculate F_f

Step 4:
Use V = ∫q ds to calculate F_f

Shear Centre solution step 4

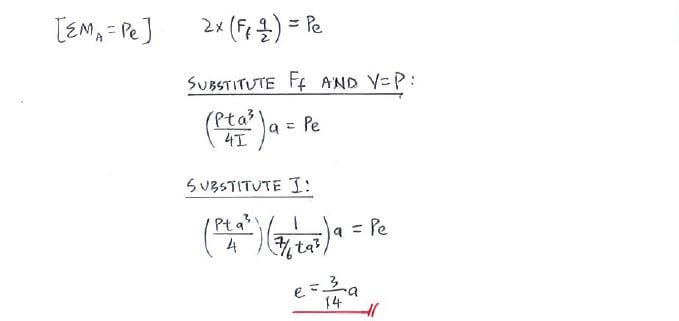

Step 5:
Use ΣM_A = Pe to find shear centre e

Step 5:
Use ΣM_A = Pe to find shear centre e

Shear Centre solution step 5

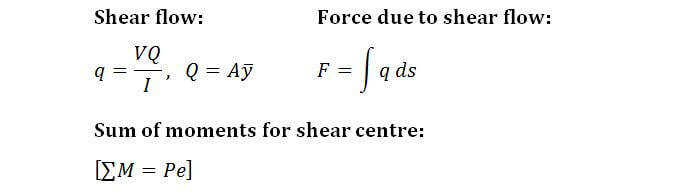

Useful formula:

Useful formula:

Shear Centre formula

Congratulations! You've completed all the questions in this topic. Let's look at C4: Torsion now.
