Statically Indeterminate Analysis with Torque question 2

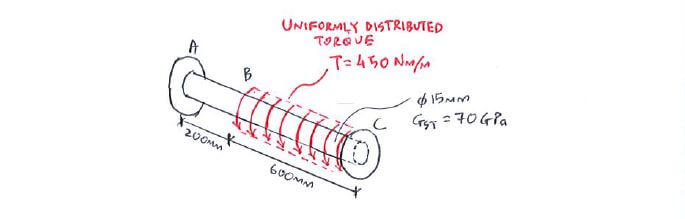

The shaft above has a uniformly distributed torque acting on section BC. Determine the torsional reactions at A and C.

The shaft above has a uniformly distributed torque acting on section BC. Determine the torsional reactions at A and C.

Click below to show answer. X

Step 1:
Calculate polar moment of inerta J

Step 1:
Calculate polar moment of inerta J

Statically Indeterminate Analysis with Torque solution step 1

Step 2:
1st equation from [ΣT = 0]; find internal torques

Step 2:
1st equation from [ΣT = 0]; find internal torques

Statically Indeterminate Analysis with Torque solution step 2

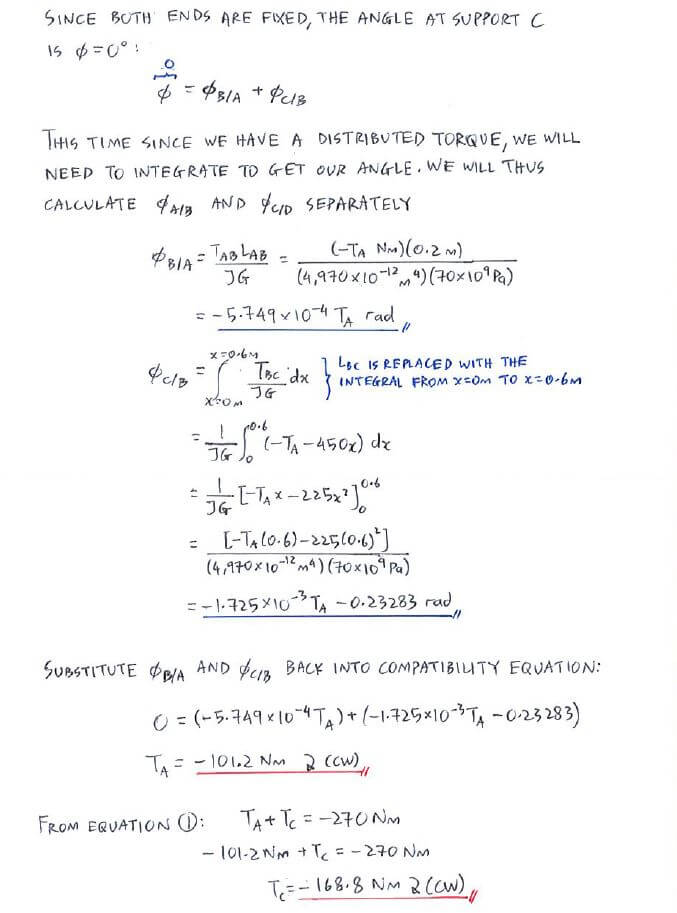

Step 3:
2nd equation from compatibility equation; solve for T_A and T_C

Step 3:
2nd equation from compatibility equation; solve for T_A and T_C

Statically Indeterminate Analysis with Torque solution step 3

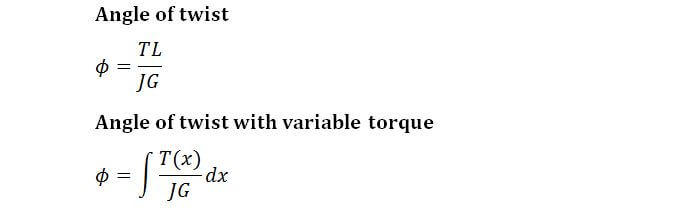

Useful formula:

Useful formula:

Statically Indeterminate Analysis with Torque formula

Congratulations! You've completed all the questions in this topic. Let's look at C4.2: Thin-Walled Tubes with Closed Cross-Sections now.
