Superposition Method for Statically Indeterminate Beams and Shafts question 1

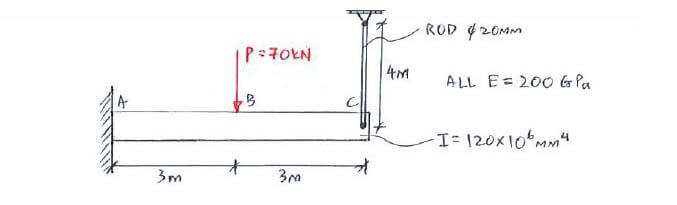

The cantilevered beam is supported by rod CD at its free-end. Determine the displacement at point C (Δ_C↓) and the force in rod CD.

The cantilevered beam is supported by rod CD at its free-end. Determine the displacement at point C (Δ_C↓) and the force in rod CD.

Click below to show answer. X

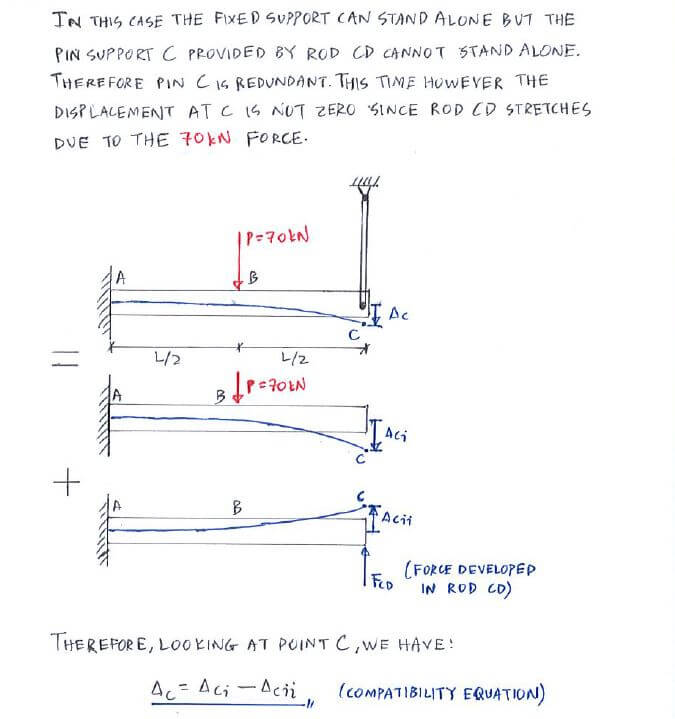

Step 1:
Identify redundant supports and setup compability equation

Step 1:
Identify redundant supports and setup compability equation

Superposition Method for Statically Indeterminate Beams and Shafts solution step 1

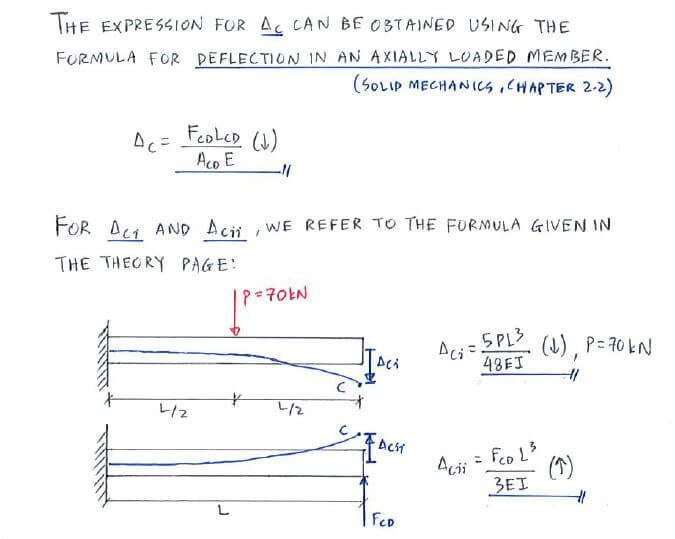

Step 2:
Obtain expressions for each displacement in the compability equation

Step 2:
Obtain expressions for each displacement in the compability equation

Superposition Method for Statically Indeterminate Beams and Shafts solution step 2

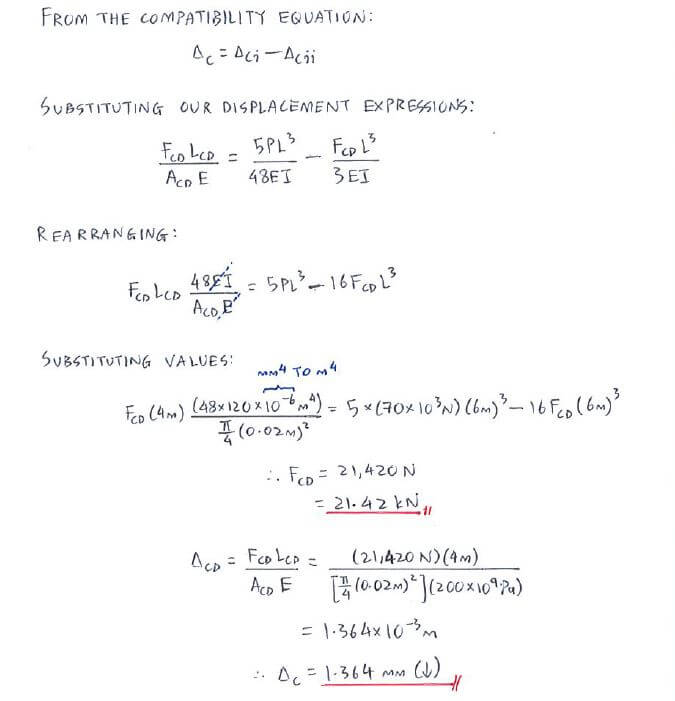

Step 3:
Solve for F_CD and get Δ_C ↓

Step 3:
Solve for F_CD and get Δ_C ↓

Superposition Method for Statically Indeterminate Beams and Shafts solution step 3

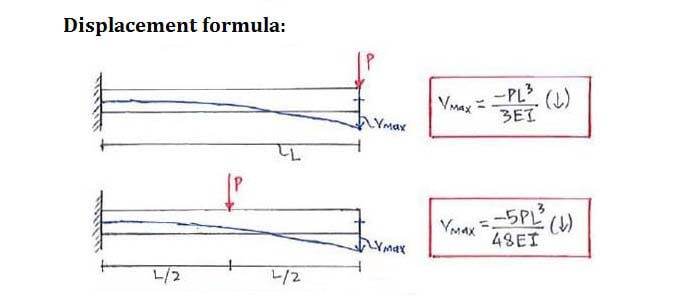

Useful formula:

Useful formula:

Superposition Method for Statically Indeterminate Beams and Shafts formula

Now that you've mastered this question, you can try Question 2.
