Superposition Method for Statically Indeterminate Beams and Shafts question 2

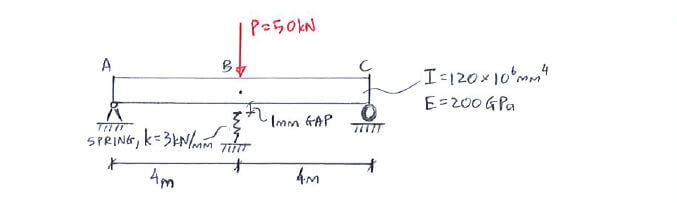

Beam ABC is simply supported and is 1 mm above the spring before the 50 kN force is applied. Determine the final compression in the spring.

Beam ABC is simply supported and is 1 mm above the spring before the 50 kN force is applied. Determine the final compression in the spring.

Click below to show answer. X

Step 1:
Identify redundant supports and setup compability equation

Step 1:
Identify redundant supports and setup compability equation

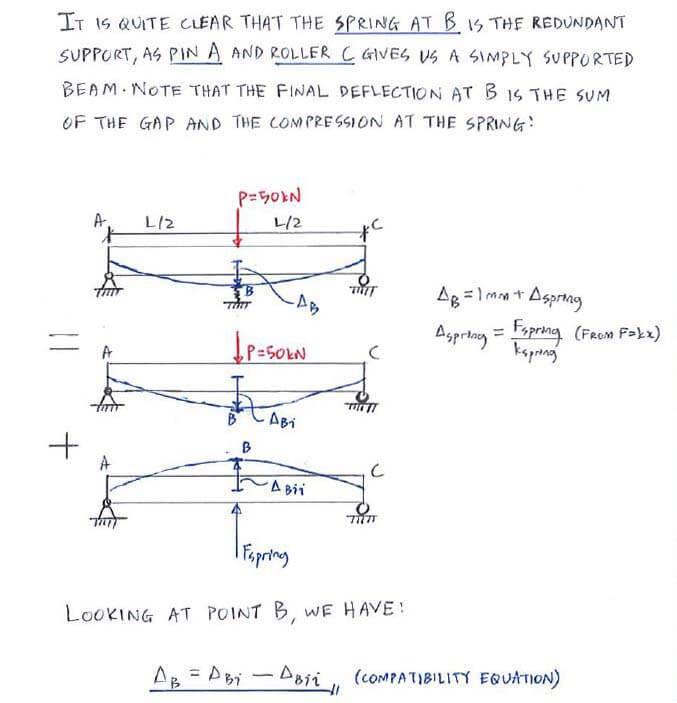

Superposition Method for Statically Indeterminate Beams and Shafts solution step 1

Step 2:
Obtain expressions for each displacement in the compability equation

Step 2:
Obtain expressions for each displacement in the compability equation

Superposition Method for Statically Indeterminate Beams and Shafts solution step 2

Step 3:
Solve for Δ_spring using compability equation

Step 3:
Solve for Δ_spring using compability equation

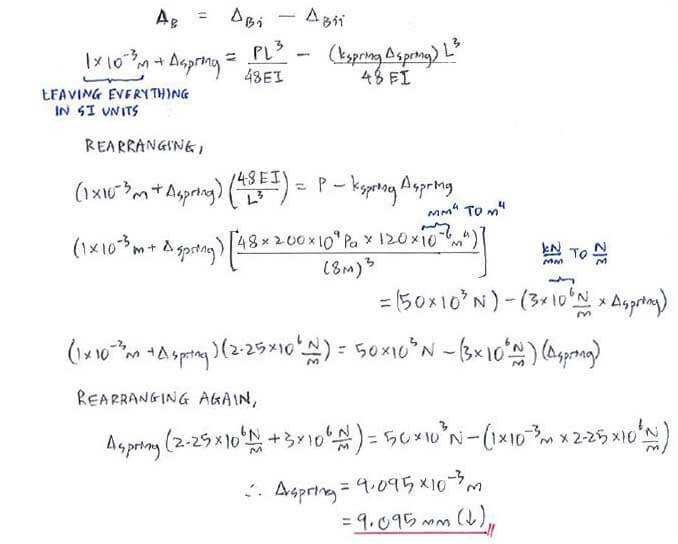

Superposition Method for Statically Indeterminate Beams and Shafts solution step 3

Useful formula:

Useful formula:

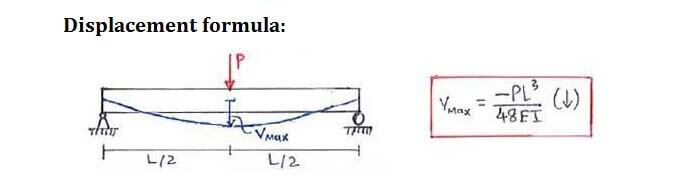

Superposition Method for Statically Indeterminate Beams and Shafts formula

Now that you've mastered this question, you can try Question 3.
