Example Question 1

Example Question 1

Moment and Couple example question 1

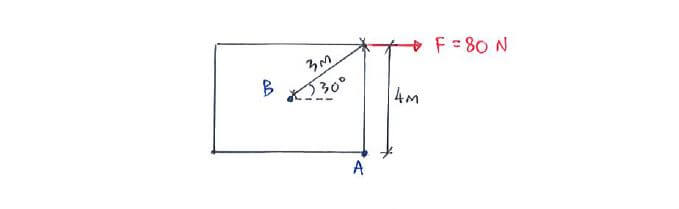

Simple warm-up problem: calculate the moment caused by force F about:

point A
point B

Simple warm-up problem: calculate the moment caused by force F about:

point A
point B

Click below to show answer. X

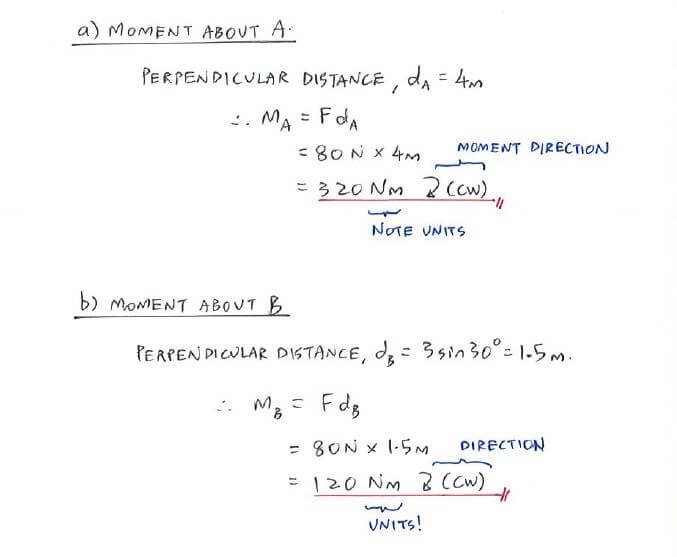

Step 1:
Calculate moment caused by force using perpendicular distance

Step 1:
Calculate moment caused by force using perpendicular distance

Moment and Couple solution step 1

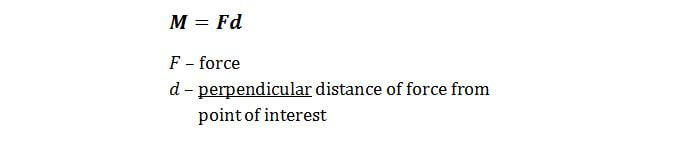

Useful formula:

Useful formula:

Moment and Couple formula

Now that you've mastered this question, you can try Example 2.
