Question 1

Question 1

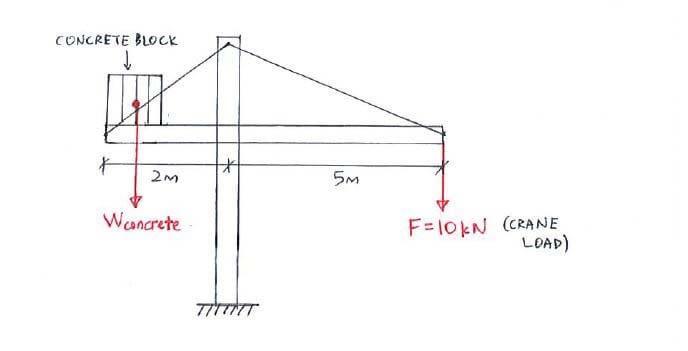

Moment and Couple question 1

What is the weight of the concrete block required to prevent the crane from toppling?

What is the weight of the concrete block required to prevent the crane from toppling?

Click below to show answer. X

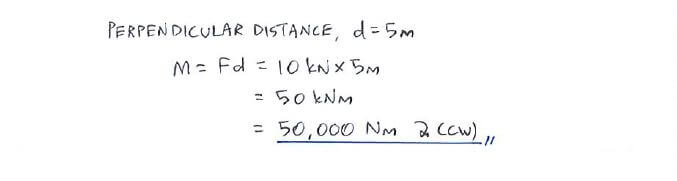

Step 1:
Calculate moment caused by crane load

Step 1:
Calculate moment caused by crane load

Moment and Couple solution step 1

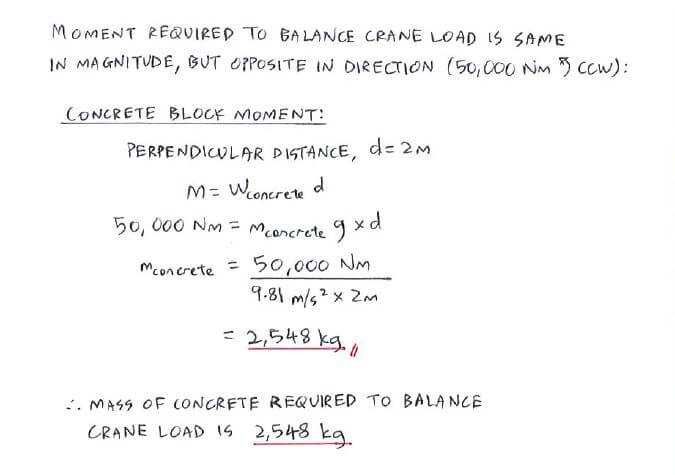

Step 2:
Calculate weight of concrete block required to balance crane load

Step 2:
Calculate weight of concrete block required to balance crane load

Moment and Couple solution step 2

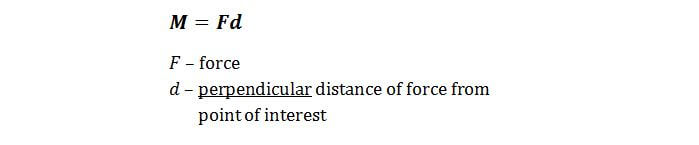

Useful formula:

Useful formula:

Moment and Couple formula

Now that you've mastered this question, you can try Question 2.
