Question 2

Question 2

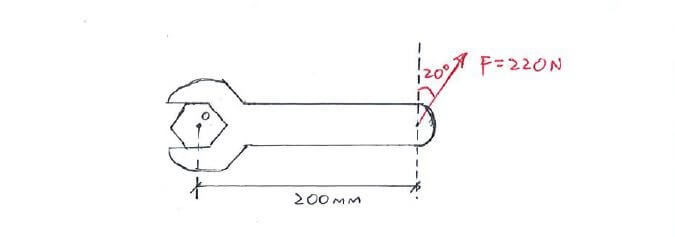

Moment and Couple question 2

Find the equivalent force-couple system about O.

Find the equivalent force-couple system about O.

Click below to show answer. X

Step 1:
Identify equivalent force-couple at O

Step 1:
Identify equivalent force-couple at O

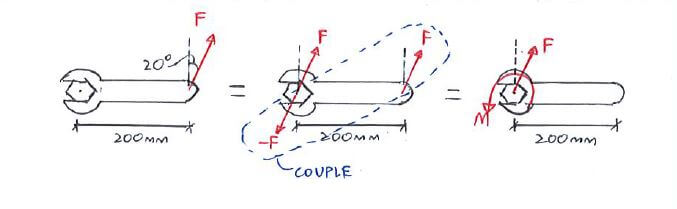

Moment and Couple solution step 1

Step 2:
Calculate couple

Step 2:
Calculate couple

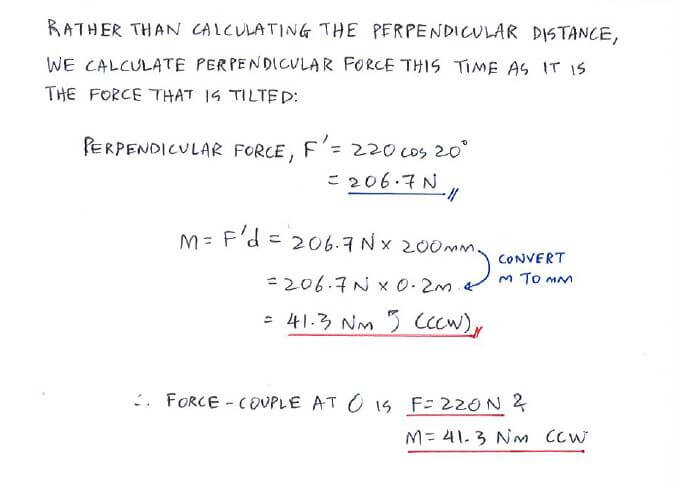

Moment and Couple solution step 2

Useful formula:

Useful formula:

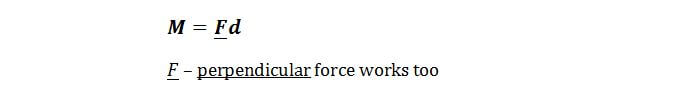

Moment and Couple formula

Now that you've mastered this question, you can try Question 3.
