Question 2

Question 2

Resultants question 2

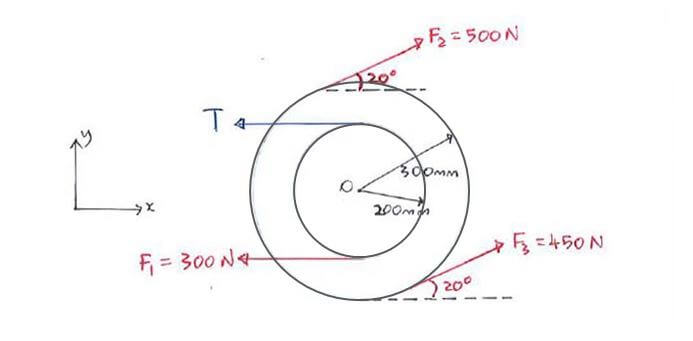

The diagram shows a belt pulley-drive reduction system. If the resultant force passes through point O, calculate:

the belt tension T
the magnitude and direction of the resultant R

The diagram shows a belt pulley-drive reduction system. If the resultant force passes through point O, calculate:

the belt tension T
the magnitude and direction of the resultant R

Click below to show answer. X

Step 1:
Find T by considering net moment

Step 1:
Find T by considering net moment

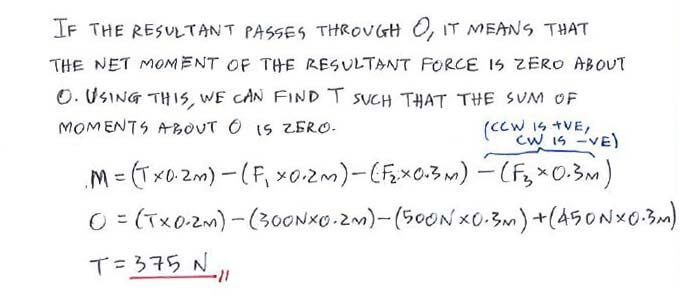

Resultants solution step 1

Step 2:
Calculate magnitude and direction of resultant force R

Step 2:
Calculate magnitude and direction of resultant force R

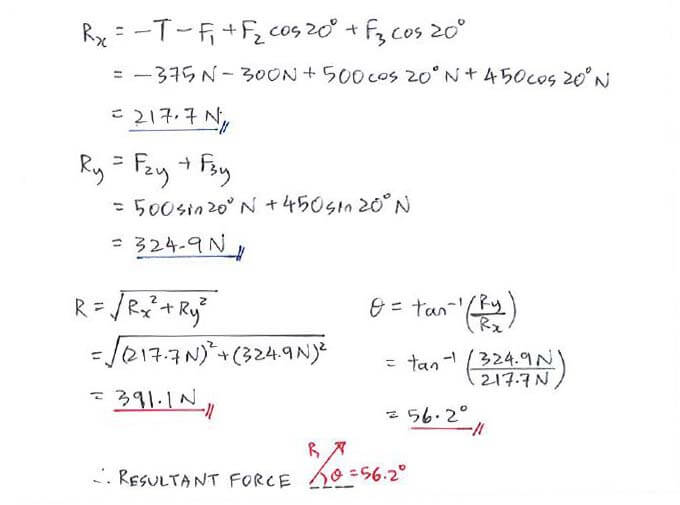

Resultants solution step 2

Useful formula:

Useful formula:

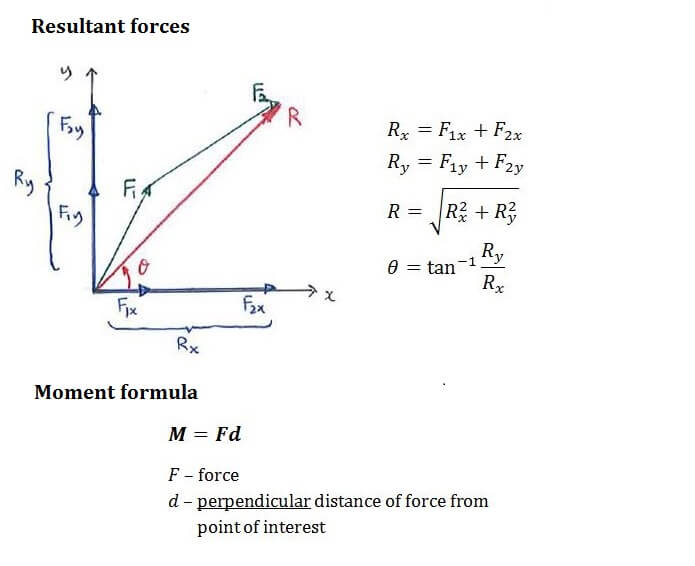

Resultants formula

Congratulations! You've completed all the questions in this topic. Let's look at C2: Free-Body Diagram and Equilibrium now.
