Question 1

Question 1

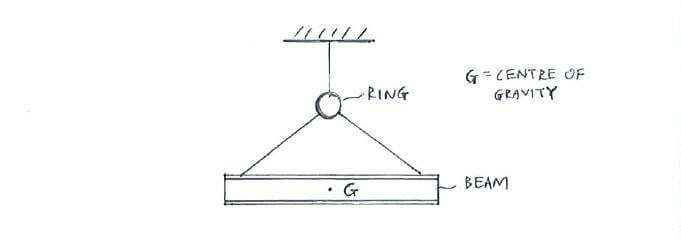

Free-Body Diagram (FBD) and Supports question 1

Draw the FBD of:

the whole system
the ring

Draw the FBD of:

the whole system
the ring

Click below to show answer. X

Step 1:
Draw FBD of the whole system

Step 1:
Draw FBD of the whole system

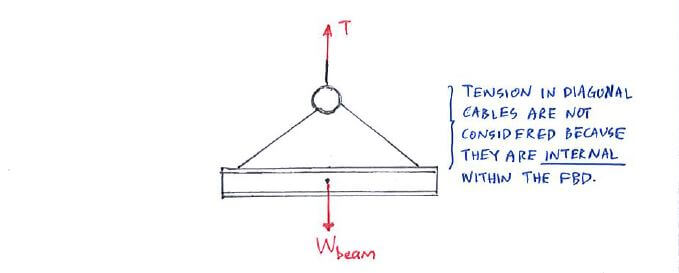

Free-Body Diagram (FBD) and Supports solution step 1

Step 2:
Draw FBD of the ring

Step 2:
Draw FBD of the ring

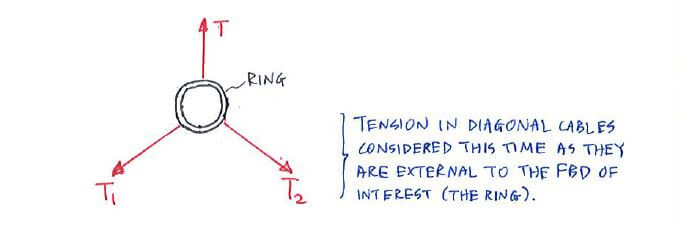

Free-Body Diagram (FBD) and Supports solution step 2

Now that you've mastered this question, you can try Question 2.
