Question 1

Question 1

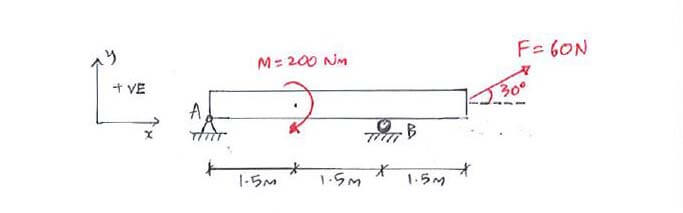

Equations of Equilibrium question 1

Determine reaction forces at A and B.

Determine reaction forces at A and B.

Click below to show answer. X

Step 1:
Draw FBD of beam and identify reaction forces

Step 1:
Draw FBD of beam and identify reaction forces

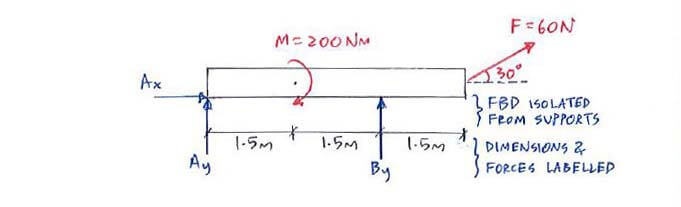

Equations of Equilibrium solution step 1

Step 2:
Apply equations of equilibrium to get reaction forces

Step 2:
Apply equations of equilibrium to get reaction forces

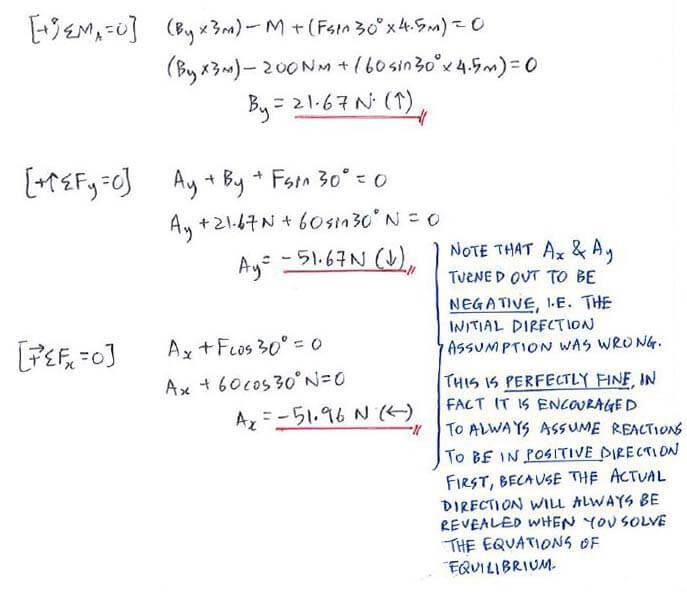

Equations of Equilibrium solution step 2

Useful formula:

Useful formula:

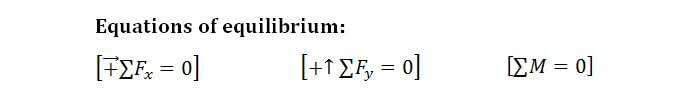

Equations of Equilibrium formula

Now that you've mastered this question, you can try Question 2.
