Equations of Equilibrium question 2

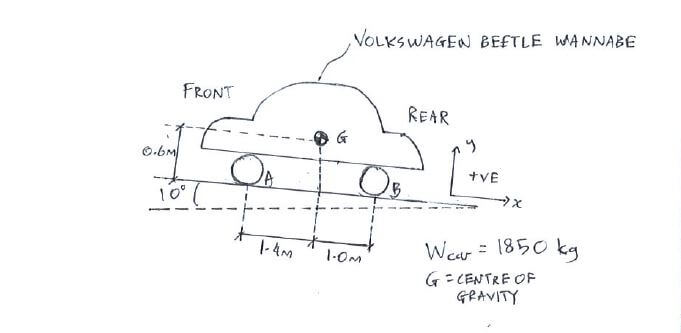

You parked your Volkswagen Beetle on a slope. It has brakes only on the rear wheel. Calculate the reaction forces on the wheels.

You parked your Volkswagen Beetle on a slope. It has brakes only on the rear wheel. Calculate the reaction forces on the wheels.

Click below to show answer. X

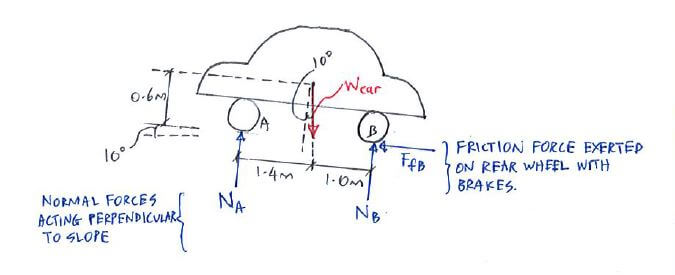

Step 1:
Draw FBD of car and identify reaction forces

Step 1:
Draw FBD of car and identify reaction forces

Equations of Equilibrium solution step 1

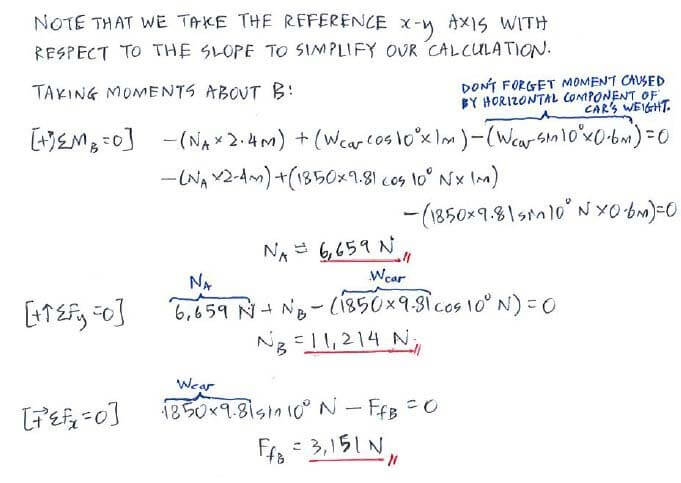

Step 2:
Apply equations of equilibrium to get reaction forces

Step 2:
Apply equations of equilibrium to get reaction forces

Equations of Equilibrium solution step 2

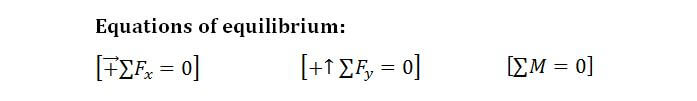

Useful formula:

Useful formula:

Equations of Equilibrium formula

Now that you've mastered this question, you can try Question 3.
