Frames and Machines example question

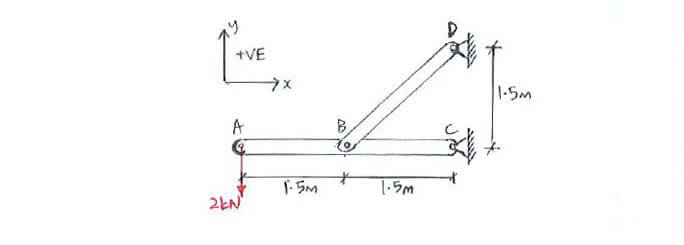

Determine the forces acting in pins A, B and C.

Determine the forces acting in pins A, B and C.

Click below to show answer. X

Step 1:
Draw FBD of separate members and add action-reaction pairs

Step 1:
Draw FBD of separate members and add action-reaction pairs

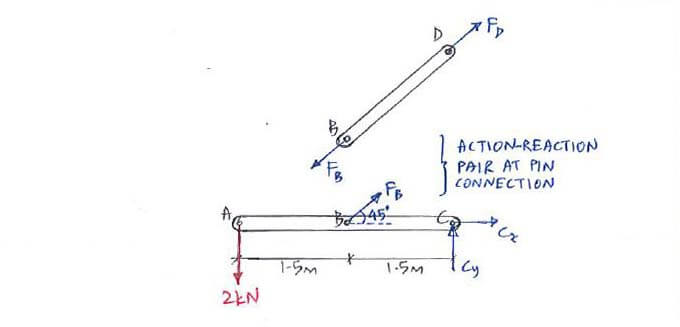

Frames and Machines solution step 1

Step 2:
Apply equations of equilibrium to solve for forces

Step 2:
Apply equations of equilibrium to solve for forces

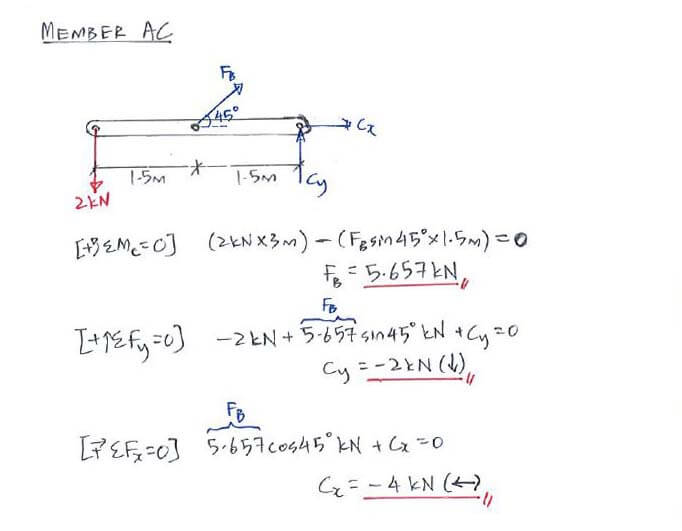

Frames and Machines solution step 2

Useful formula:

Useful formula:

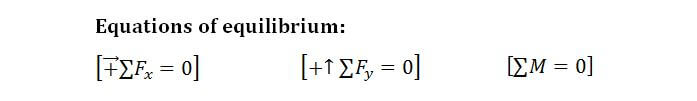

Frames and Machines formula

Now that you've mastered this question, you can try Question 1.
