Question 1

Question 1

Centroid of Composite Bodies question 1

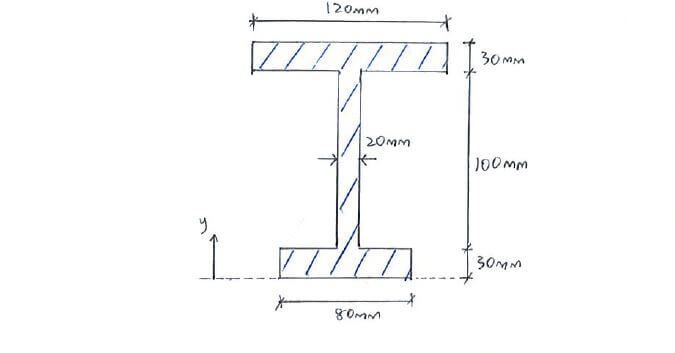

Find the centroid ȳ of the unsymmetrical I-section with respect to its base.

Find the centroid ȳ of the unsymmetrical I-section with respect to its base.

Click below to show answer. X

Step 1:

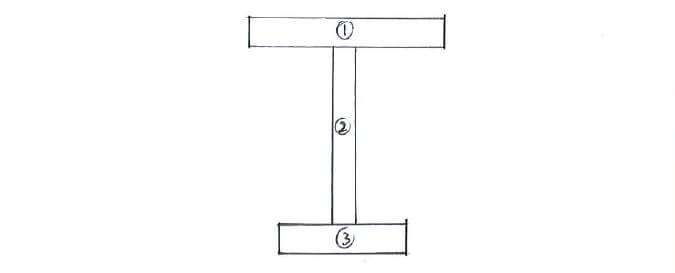

Break geometry into simple shapes and label them

Step 1:
Break geometry into simple shapes and label them

Centroid of Composite Bodies solution step 1

Step 2:

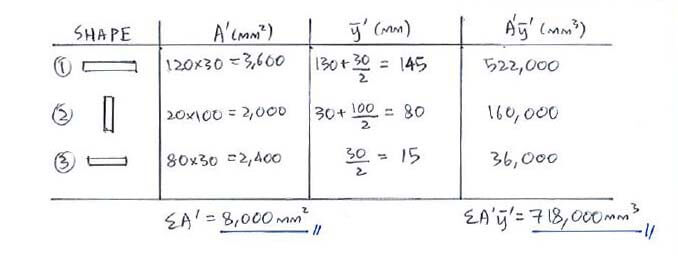

Construct table to evaluate centroid parameters

Step 2:
Construct table to evaluate centroid parameters

Centroid of Composite Bodies solution step 2

Step 3:
Calculate centroid ȳ

Step 3:
Calculate centroid ȳ

Centroid of Composite Bodies solution step 3

Useful formula:

Useful formula:

Centroid of Composite Bodies formula

Now that you've mastered this question, you can try Question 2.
