Beams – Distributed Forces example question

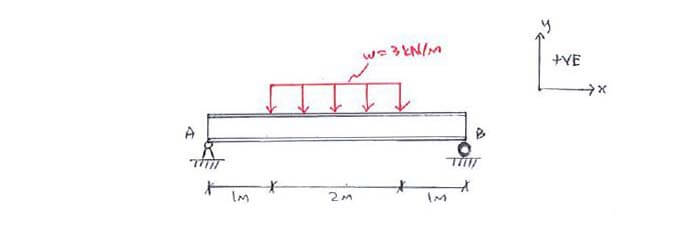

Find the reaction forces at A and B caused by the distributed load.

Find the reaction forces at A and B caused by the distributed load.

Click below to show answer. X

Step 1:

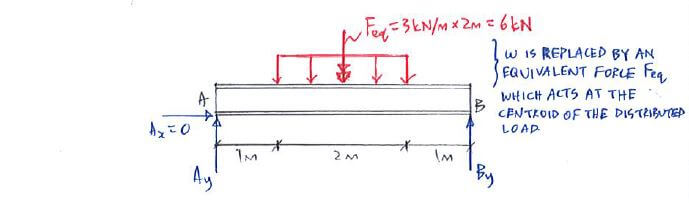

Draw FBD of beam and replace distributed load with equivalent force

Step 1:
Draw FBD of beam and replace distributed load with equivalent force

Beams – Distributed Forces solution step 1

Step 2:

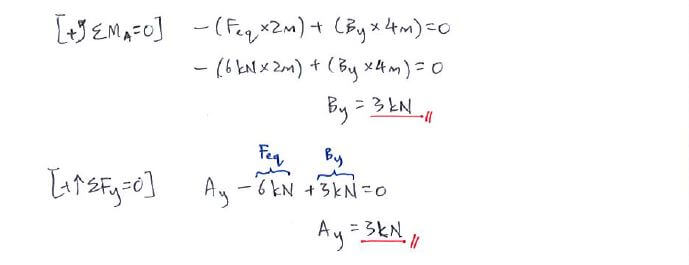

Solve for reaction forces using equations of equilibrium

Step 2:
Solve for reaction forces using equations of equilibrium

Beams – Distributed Forces solution step 2

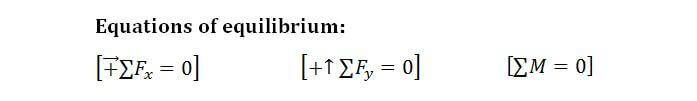

Useful formula:

Useful formula:

Beams – Distributed Forces formula

Now that you've mastered this question, you can try Question 1.
