Question 2

Question 2

Beams – Distributed Forces question 2

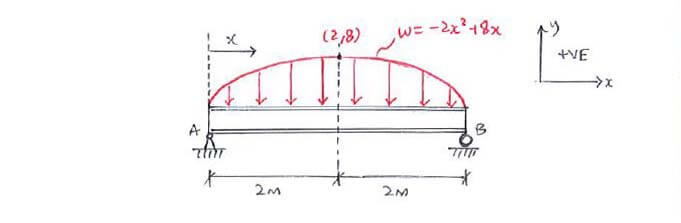

Find the reaction forces at A and B.

Find the reaction forces at A and B.

Click below to show answer. X

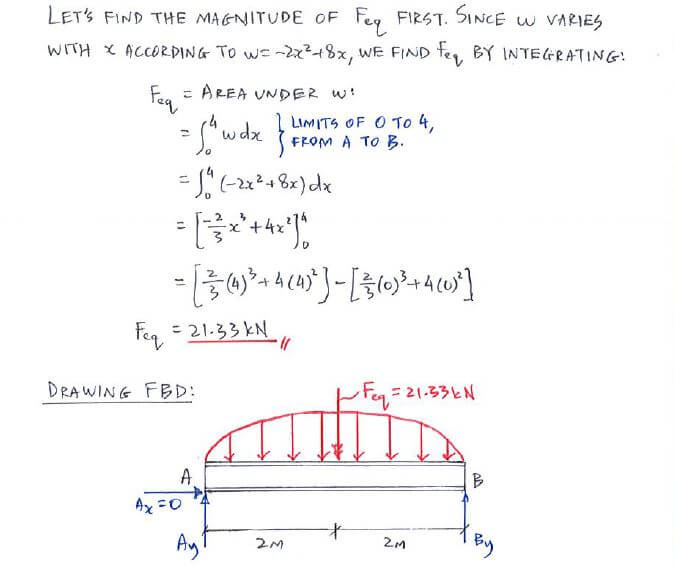

Step 1:
Draw FBD of beam and replace distributed load with equivalent force

Step 1:
Draw FBD of beam and replace distributed load with equivalent force

Beams – Distributed Forces solution step 1

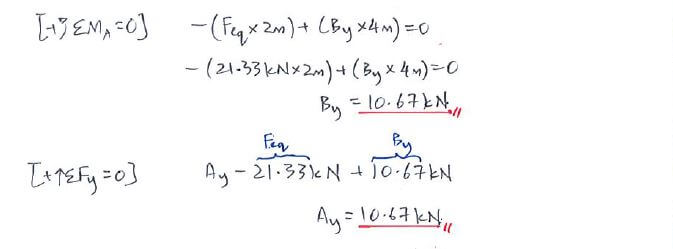

Step 2:
Solve for reaction forces using equations of equilibrium

Step 2:
Solve for reaction forces using equations of equilibrium

Beams – Distributed Forces solution step 2

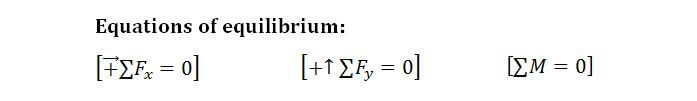

Useful formula:

Useful formula:

Beams – Distributed Forces formula

Now that you've mastered this question, you can try Question 3.
