Question 3

Question 3

Beams – Distributed Forces question 3

Find the reaction forces at the fixed support A.

Find the reaction forces at the fixed support A.

Click below to show answer. X

Step 1:

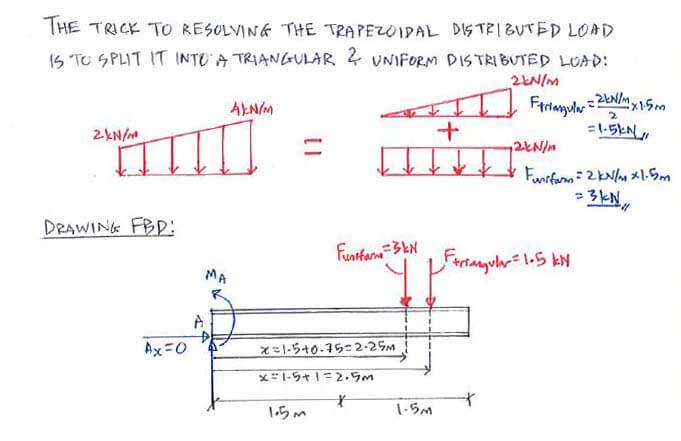

Draw FBD of beam and replace distributed load with equivalent force

Step 1:
Draw FBD of beam and replace distributed load with equivalent force

Beams – Distributed Forces solution step 1

Step 2:
Solve for reaction forces using equations of equilibrium

Step 2:

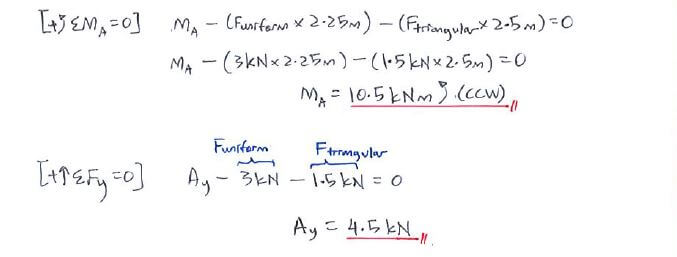

Solve for reaction forces using equations of equilibrium

Beams – Distributed Forces solution step 2

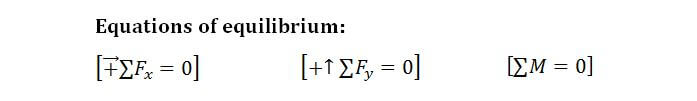

Useful formula:

Useful formula:

Beams – Distributed Forces formula

Congratulations! You've completed all the questions in this topic. Let's look at C5.2: Beams - Internal Forces now.
