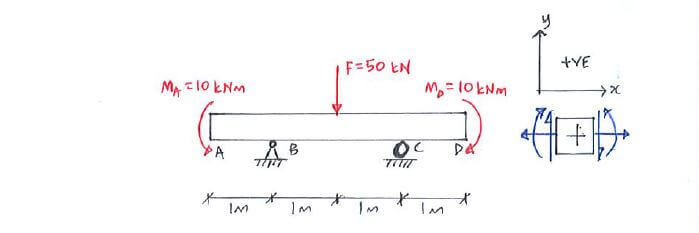

Draw the shear force and bending moment diagrams for beam AD using the direct method.

>> Here we give you the FBD directly as we want to emphasize on teaching you the direct method to construct SF & BM diagrams.

Draw the shear force and bending moment diagrams for beam AD using the direct method.

>> Here we give you the FBD directly as we want to emphasize on teaching you the direct method to construct SF & BM diagrams.

Click below to show answer. X

Step 1:
Construct shear force diagram (SFD) using direct method

Step 1:
Construct shear force diagram (SFD) using direct method

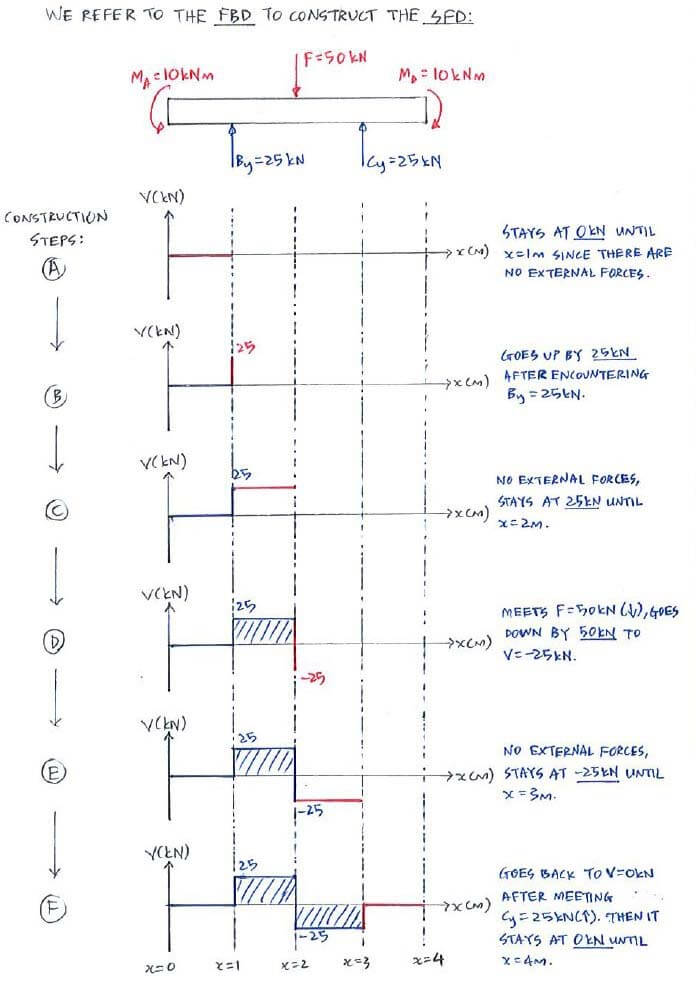

Shear Force and Bending Moment Diagrams solution step - direct method 1

Step 2:
Construct bending moment diagram (BMD) using direct method

Step 2:
Construct bending moment diagram (BMD) using direct method

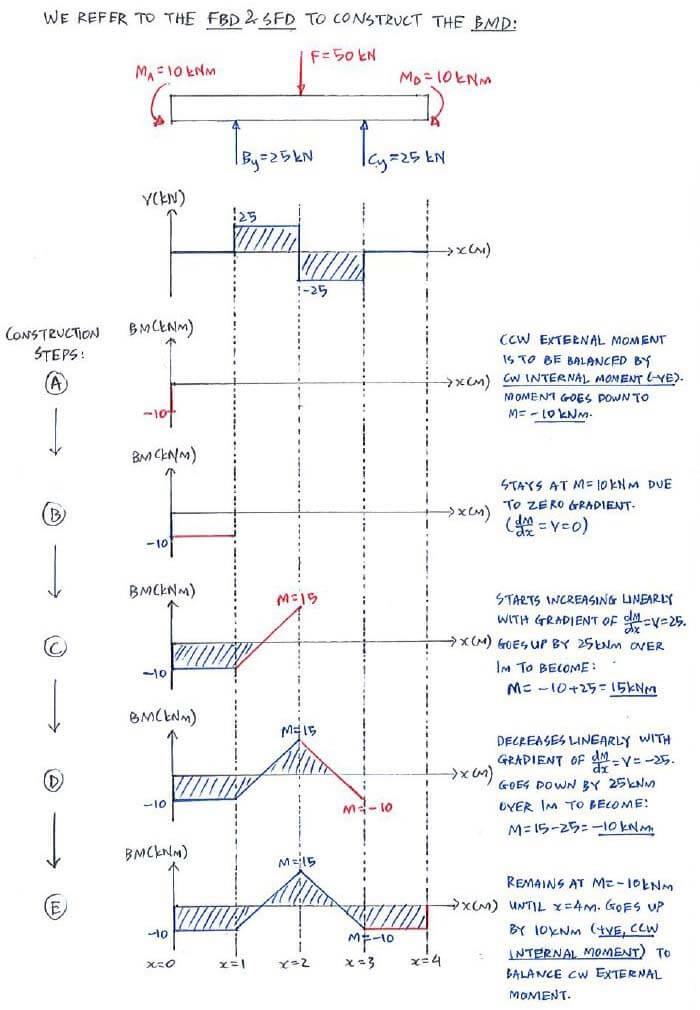

Shear Force and Bending Moment Diagrams solution step - direct method 2

Congratulations! You've completed all the questions in this topic. Let's look at C6: Friction now.
